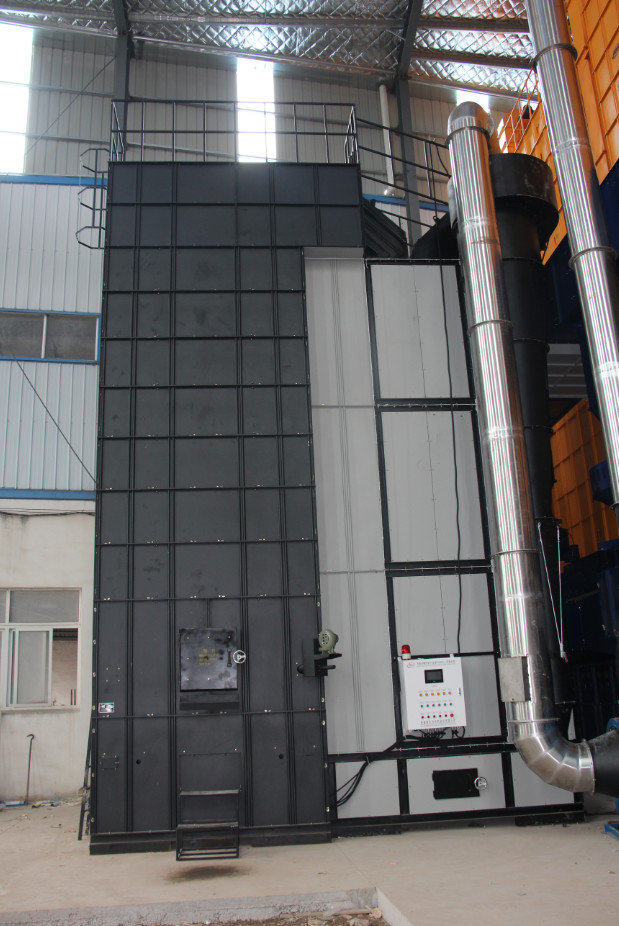

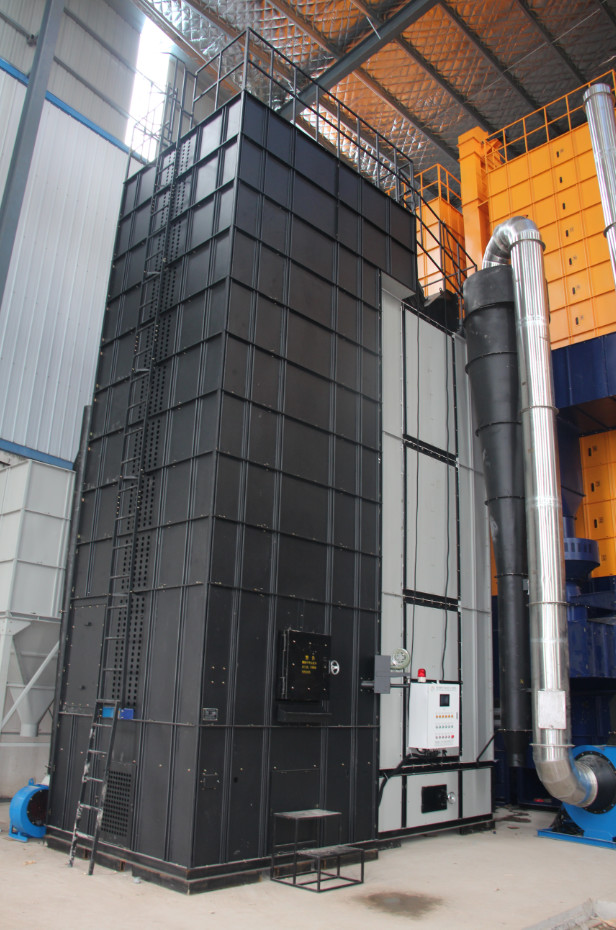

Automatic Running Indirect Biomass Rice Hull Furnace 2,000,000 Kcal

Place of Origin CHINA
Brand Name PRESUN
Certification ISO
Model Number 5LXF-200
Minimum Order Quantity 1set
Packaging Details Wooden cases
Delivery Time 20-30 WORKING DAYS
Payment Terms L/C, T/T
Supply Ability 10 SETS PER MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Fuel Husk
Color Black Ignition Mode Automatic
Heat 1,500,000 Kcal Weight 8,000 Kg
High Light

Automatic Running Rice Hull Furnace

,

Automatic Running Rice Husk Furnace

,

Indirect Biomass Rice Hull Furnace

Leave a Message
Product Description

Biomass rice hull stove automatic running indirect biomass rice hull furnace 2,000,000 kcal

The Best Choice To Lower Down The Fuel Consumption Charges Toward Drying Equipment
Low drying cost Significantly reduces drying cost! Rice hull price much lower than diesel/gas
Easy operation Automatic computerized control, fool-proof design, easy operation.
Best rice quality Drying at constant temperature produces the most high-quality rice, paddy seeds and wheat seeds.
Environment-free Equipment Indirect and clean hot-air outlet and blowing ash into ash tank,cyclone to lower down smoke before goes to chimney

AUTO FEEDING DRYING COMPLEX DRAWING(PADDY HUSK ONLY)

Automatic Running Indirect Biomass Rice Hull Furnace 2,000,000 Kcal 0

Equipments required:
1:Intake Pits 2:Elevator 3:Belt Conveyor 4:Storage Bin 5:Cyclonic Furnace 6:Grain Dryer

Fully Automatic Feeding&Running System,No Human Labor Required
Husk&Ash Collecting Bin Already Installed,No Waste And Pollution
Precisely Temperature Control System,All The Paddy Would Be Well Dried And Protected
Massive Capacity Up to 200 Tons Per Batch,Suitable To Modernized Super Rice Mill

Automatic Running Indirect Biomass Rice Hull Furnace 2,000,000 Kcal 1

Parameters

Model 5LXF-100 5LXF-150 5LXF-200
Burning Method Cyclonic Furnace
Fuel Husk
Heating Mode Indirect
Heat Exchange Square 88㎡ 138㎡ 188㎡
Heat Efficiency ≥80 % ≥80 % ≥80 %
Husk Consumption 100~265 kg/h 220~550 kg/h 260~650 kg/h
Ash Discharge kg/h 20-50 kg/h 40-95 kg/h 45-110 kg/h
Dimension (mm) 4000*1600*3870 4600*1600*3870 6790*6560*9250
Power (kw) 9.5 11.5 21.05
Weight (kg) 8000 10000 30000
Safety Devices Abnormal combustion sensor, Flame sensor, Automatic abnormal safe guard, Thermal relay, Rotation sensor, Control fuse
Supply Dryer Quantities 5HPX-15 5 sets 5HPX-15 7 sets 5HPX-15 9 sets
5HPX-20 4 sets 5HPX-20 7 sets 5HPX-20 9 sets
5HPX-30 2 sets 5HPX-30 5 sets 5HPX-30 6 sets

















Applications

Automatic Running Indirect Biomass Rice Hull Furnace 2,000,000 Kcal 2
Automatic Running Indirect Biomass Rice Hull Furnace 2,000,000 Kcal 3Automatic Running Indirect Biomass Rice Hull Furnace 2,000,000 Kcal 4


What We Can Offer

1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season


Our Factory

Anhui Xingshengli Agricultural Machinery Co.,Ltd is a professional manufacturer with development,
manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,
and about 1200 square meters as the office area in Hefei, Anhui province.
We have professional technical engineers and experts who have been working in grain drying field for
more than 10 years. With the development of our company, we successfully transferred into a listed
company in NEEQ in the April of 2017, our stock code:871356.

The company take full advantage of advanced technique, management, financing and service concept,
unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the
same time, we always research and develop products to meet different market and customer’s demand.
Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary
equipments are available,reaching a quicker grain input & output speed.
Our company always insist on”people foremost, service to farmers” as our management concept; “energy

conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.
We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
