Indirect Burning 600K Kcalorie Biomass Rice Hull Stove

Place of Origin CHINA
Brand Name PRESUN
Certification ISO
Model Number XSL-60
Minimum Order Quantity 1set
Price USD 85000-18000
Packaging Details Appreance protection
Delivery Time 5-8 WORKING DAYS
Payment Terms L/C, T/T
Supply Ability 100 SETS PER MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Fuel Rice Hull
Feeding Mode Manual Heating Mode Indirect
Ignition Mode Manual Product Name Rice Husk Burner
Highlight

600K Kcalorie rice hull stove

,

biomass rice hull stove

,

Indirect biomass stove

Leave a Message
Product Description

Indirect burning biomass fuel stove 500,000 Kcal per hour

The residue of your crops can be converted into the heat for the grain dryer. You won’t have to worry about the floating price of the fuel to affect your profit, because you can generate free fuel by yourself. During the process of milling, the husk is separated from paddy,or just get firewood or corn cob from your mill; With the furnace Presun, you can generate the heat to process the drying of the grain.



Advantages of our biomass furnace

1) Indirect heating system with hundreds of heat exchanger ductings

2) Enormous biomass material options,such as paddy husk,corn cob,firewood,coal and others

3) Combustion zone made of firebrick and cement,long durability and stability

4) Heat exchanger and combustion zone are desgined at same level,so could save the space

5) If choose paddy husk or biomass pallet,could working automatically with auto feeder,ash removal and cyclone(need to buy extra)



Technical parameters

Model XSL-45 XSL-60 XSL-90
Heating Mode Indirect
Ignition Mode Manual
Feeding Mode Manual/Automatic
Heating Temperature ≤ 100℃
Heating Supply 450,000 Kcalorie 600,000 Kcalorie 900,000 Kcalorie
Biomass Fuel Husk/Coal/Wood & Other Biomass Material
Husk Consumption 60~180 kg/hr 80~240 kg/hr 120~360 kg/hr
Input Voltage 3 Phase 220V/380V,50Hz
Power (kw) 4.5 5.2 6.2
Control Method Automatic Control
Dimensions(mm) 3500*1500*2200 3800*1500*2520 5000*1800*2520
Safety Devices Low temperature automatic alarm, Temperature automatic control function, Feeding system, Ash exhaust system, Air Damper
Supply Dryer Quantities 5HPX-15 3 sets 5HPX-15 4sets 5HPX-15 6 sets
5HPX-20 2 sets 5HPX-20 3 sets 5HPX-20 4 sets
5HPX-30 1 set 5HPX-30 2 sets

5HPX-30 3 sets

The smallest furnace could supply 300,000 Kcal per hours,so it could drive at least one set 20 tons batch dryer

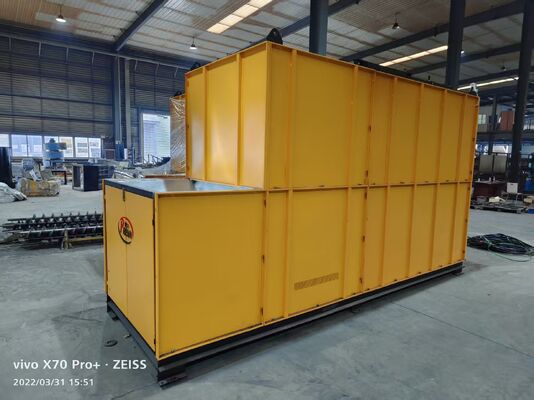

Indirect Burning 600K Kcalorie Biomass Rice Hull Stove 0

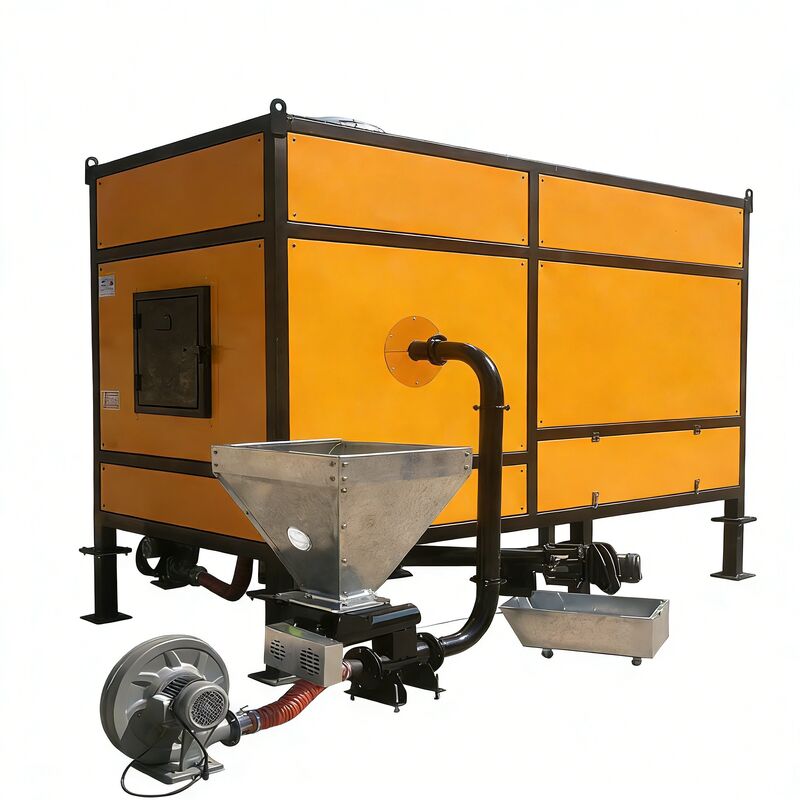

Equipment contained if choose husk as the fuel

Items Descriptions
Auto Feeder system One blower with one husk bin
Ash cleaner  One rotoary stick with one blower
cyclone 60mm diameters cyclone
Control system PLC type control panel





Applications:

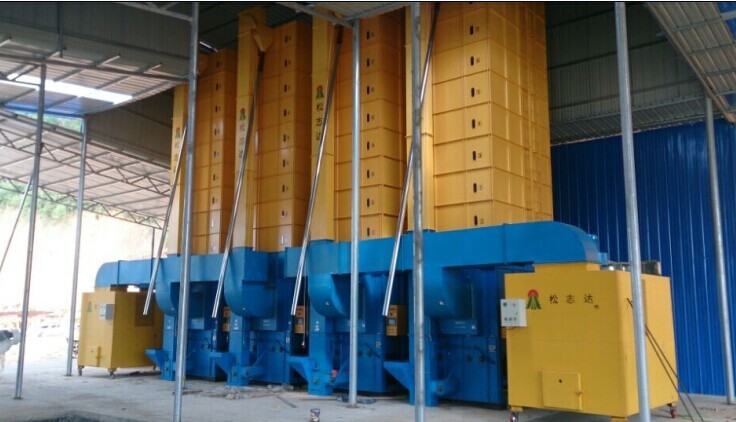

Indirect Burning 600K Kcalorie Biomass Rice Hull Stove 1

Indirect Burning 600K Kcalorie Biomass Rice Hull Stove 2

Indirect Burning 600K Kcalorie Biomass Rice Hull Stove 3



What We Can Offer

1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season



Who Are We

Indirect Burning 600K Kcalorie Biomass Rice Hull Stove 4

PRESUN is a factory dedicated to Grain Processing Machinery,about us,few items you might need to know:



1)We are located at Hefei City,Anhui Prov,China

2)Have more than 11 years experience at grain drying industry

3)10,000 square meters workshop

4)5,000 sets dryer already installed worldwide

5)600-1,000 sets dryer sold every year

6)ISO 9001 certificated company

7)Listed company since 2017
