500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace

Place of Origin CHINA
Brand Name PRESUN
Certification ISO
Model Number 5HPX-30
Minimum Order Quantity 1set
Packaging Details standard export wooden cases
Delivery Time 5-8 working days if no customization parts
Payment Terms L/C, T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Batch Type Usage Grain Drying
Condition New Body Dimension 2900*2260*12700mm
Air Consumption 10000-14000 M3/h Power 19.7kw
Highlight

paddy parboiling and drying machine

,

500 tons paddy drying machine

,

batch type paddy drying machine

Leave a Message
Product Description

500 tons paddy dryer plant manufactuer in China 500 tons paddy dryer project supplier

Rice Husk Furnace Drying Complex
For 500 Tons project,need two Husk furnace and 17 sets 30 tons dryer,one furnace drive 10 sets dryer,and another drive 7 sets dryer,so could able to reach 500 tons capacity per batch

                                             One 200 Furnace With 10 Sets 30 Tons Dryer

500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 0

500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 1Husk Feeder 500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 2Husk Tank
500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 3Rice Husk Furnace SB-200 500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 4Main Control Box
500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 5Auto Ash Discharger 500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 6Auxiliary Air Blower
500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 7Cyclone 500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 8Hot Air Duct
500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 9Dumping Pit 500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 10Bucket Elevator
500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 11Precleaner 500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 12Bucket Elevator
500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 13Loading Chain Conveyor 500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 1432 ton husk type grain dryer
500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 15Micro Air Adjuster 500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 16Hot Air Damper
500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 17Unloading Chain Conveyor

Technical Parameters

                                                               30 Tons Dryer

Model 5HPX-30
Loading capacity 30 Tons
Dimension 2900*2260*12700mm
Drying Type Low Temperature circulating Type
Power For Fan 5.5 KW*2
Drying Rate 0.6~1.4%Per Hour
Heat Consumption <30,000 KCalorie
Weight 6,000KG
Standard Device Moisture Meter,Conveyor,Fan















                                                      2 Million Kcal Husk Furnace

Model 5LXF-100 5LXF-150 5LXF-200
Burning Method Cyclonic Furnace
Fuel Husk
Heating Mode Indirect
Heat Exchange Square 88㎡ 138㎡ 188㎡
Heat Efficiency ≥80 % ≥80 % ≥80 %
Husk Consumption 100~265 kg/h 220~550 kg/h 260~650 kg/h
Ash Discharge kg/h 20-50 kg/h 40-95 kg/h 45-110 kg/h
Dimension (mm) 3200*4500*2850 5900*6430*8520 6790*6560*9250
Power (kw) 9.05 17.55 21.05
Weight (kg) 12000 25000 30000
Safety Devices Abnormal combustion sensor, Flame sensor, Automatic abnormal safe guard, Thermal relay, Rotation sensor, Control fuse
Supply Dryer Quantities 5HPX-15 5 sets 5HPX-15 7 sets 5HPX-15 9 sets
5HPX-20 4 sets 5HPX-20 7 sets 5HPX-20 9 sets
5HPX-30 2 sets 5HPX-30 5 sets 5HPX-30 6 sets

















Application

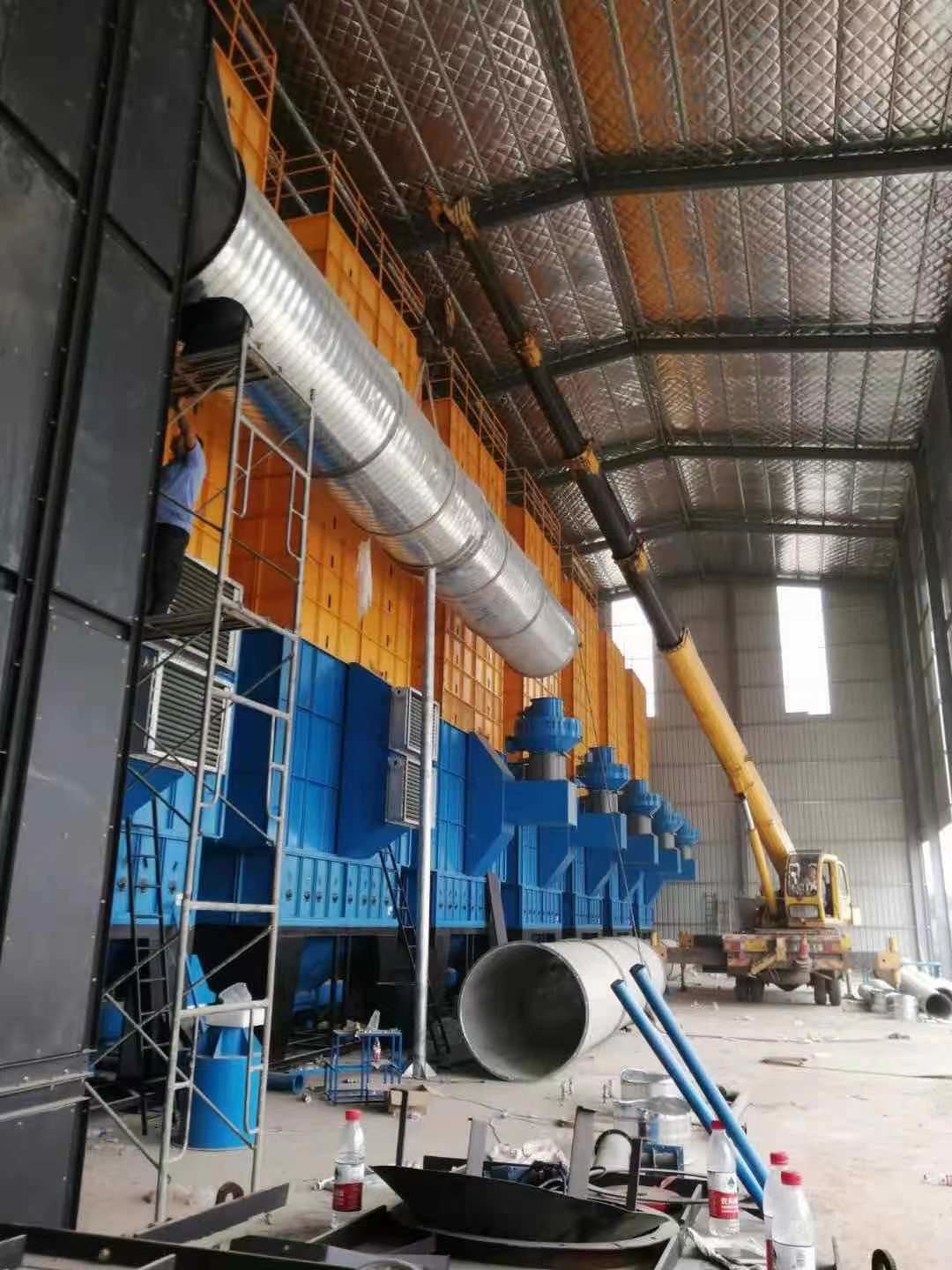

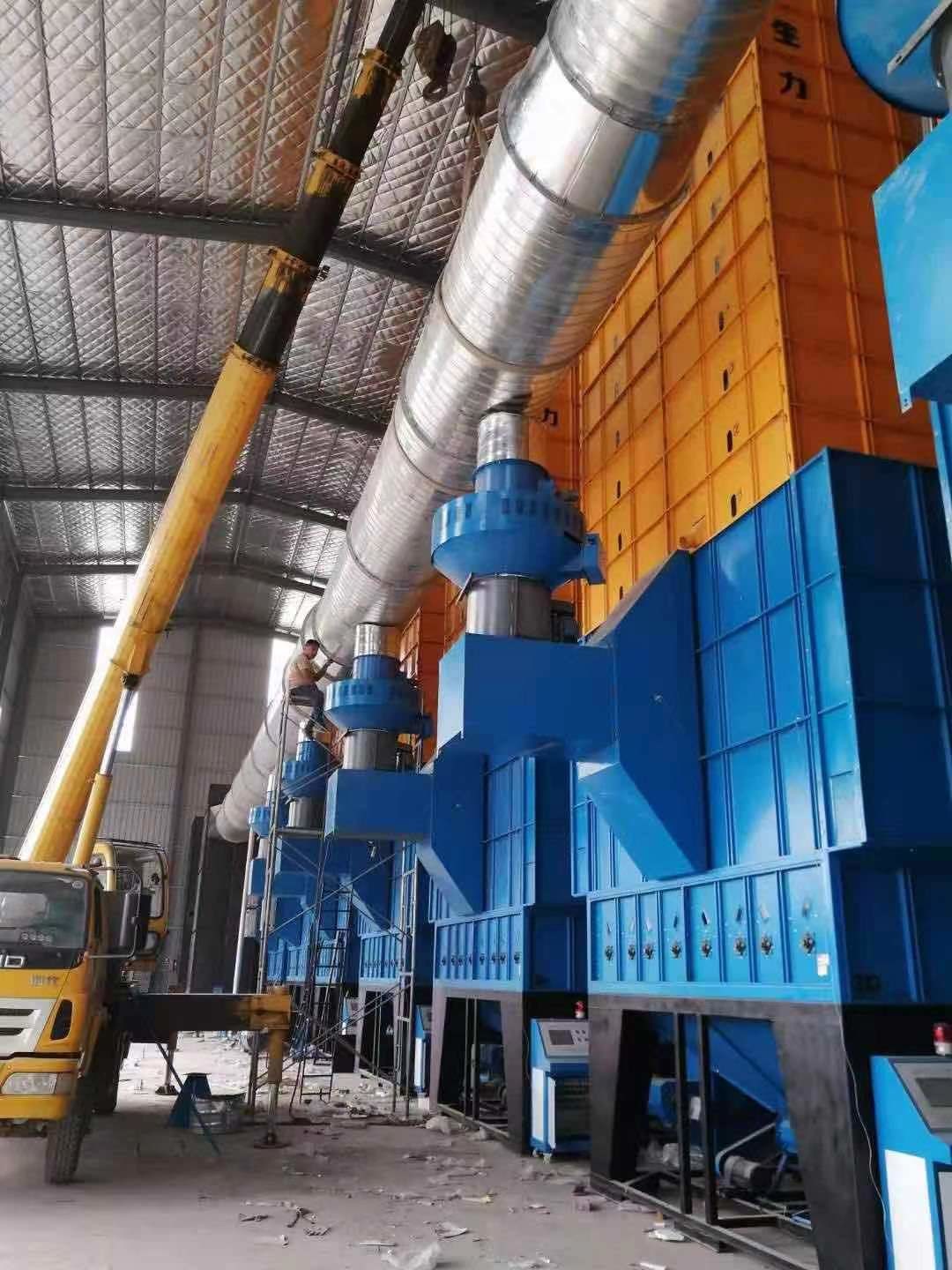

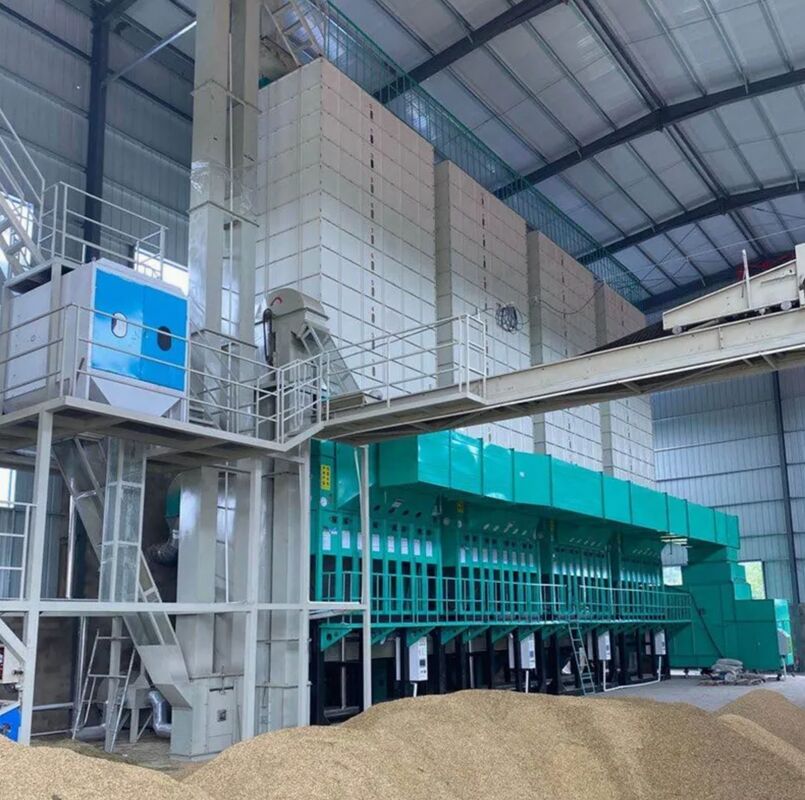

500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 18500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 19



What We Can Offer

1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season





Company Profile

500 Tons Paddy Parboiling And Drying Machine Two Husk Furnace 20

Anhui Xingshengli Agricultural Machinery Co.,Ltd is a professional manufacturer with development,

manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,

and about 1200 square meters as the office area in Hefei, Anhui province.


We have professional technical engineers and experts who have been working in grain drying field for

more than 10 years. With the development of our company, we successfully transferred into a listed

company in NEEQ in the April of 2017, our stock code:871356.



The company take full advantage of advanced technique, management, financing and service concept,

unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the

same time, we always research and develop products to meet different market and customer’s demand.

Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary

equipments are available,reaching a quicker grain input & output speed.

Our company always insist on”people foremost, service to farmers” as our management concept; “energy

conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.

We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
