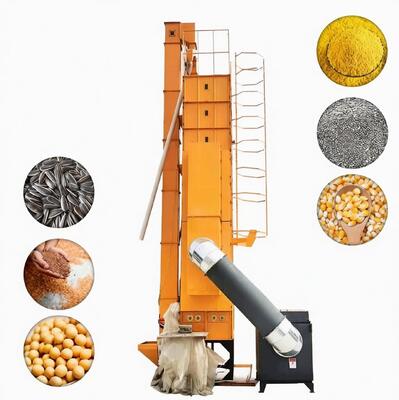

Batch Type Paddy Dryer Machine with 20 Tons Capacity and Full Time Processing for Low Temperature Circulating Grain Drying

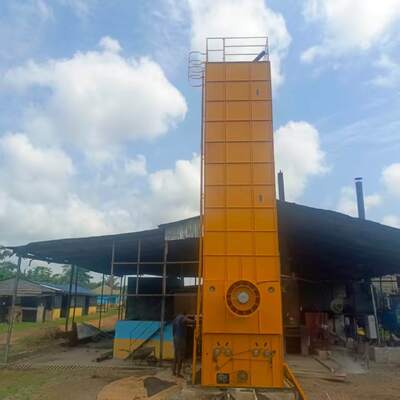

VERTICAL PADDY DRYER DRYER TOWER MACHINE 20 TONS

1. The incoming materials enter the dryer through the elevator.
2. Batch loading of grain that can be carried, after the warehouse is full, the limit full grain meter sends back the full warehouse alarm signal, close the elevator grain input plug plate to stop loading.
3. Click the automatic drying button on the PLC smart panel, and the dryer will start the program according to the pre-set sequence and enter the drying working state.
4. Press the electronic start button of the heat source (only available when fuel oil or gas), and the hot air furnace begins to enter the combustion and heating state. Ensure that there is enough fuel to use.
When burning biomass pellets or coal and wood, the initial use of the furnace temperature will rise slowly, and the clean hot air generated will be brought into the dryer through the negative pressure fan for grain drying.
5. The grain is delivered by the elevator and circulates inside the dryer.
The dry hot clean air entering the dryer is transmitted through the corner box to exchange moisture and heat with the grain, and is converted into water vapor and discharged by the dehumidification fan.
6. Depending on the type of grain and the amount of moisture entering the machine, the drying time will also be different, and it will eventually dry to the required moisture and complete the drying.
7. There is a distributor on the top of the elevator. After the grain is dried, pull down the rope above the distributor, and the grain will be released along the discharge pipe on the top of the dryer, or fall into the vehicle to be directly taken away, or swing the grain discharge pipe to allow the grain to flow directly into the warehouse for storage.
8. When multiple machines are used in series, a reasonable solution will be provided according to the customer's terrain and on-site conditions, including the entire automated process of unloading pit, screening, centralized grain feeding, centralized grain release, and storage.

IS IT ESSENTIAL TO INSTALL GRAIN DRYER MACHINE FOR YOUR MILL?

Definitely Yes,Cause...
1)Full time processing ability,get rid of bad weathers' interruption,like raining,storm,snowing and etc
2)Massive Drying Capacity,one batch could reach 20 tons capacity,if connected with 5 sets,100 tons per day is available
3)Low-cost running consumption,Biomass material/coal/gas/diesel are all available
4)Flexible installation method,one furnace could connect 3 to 4 dryers,to save the land space
5)High processing efficiency,mo blind drying section,all the material would keep to the same mositure rate,make them the same quality
6)Slow and careful auger,tiny broken and waste material during the circulation
7)Best return on Investment ratio,running one to two month,could get back the investment on the machine

TECHNICAL PARAMETERS












                                                      Furnace Burner Options

Drying Unit Diagram

What We Can Offer

1)Whole turnkey project solution
included Pre-cleaning machine,elevator,input&outlet pipe,furnace and dryer
2)Plant designition service
supply you all the possibly area required,the instllation diagram for consideration
3)Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning the machine
4)Full time online service
24 hours online technique service,ensure to tackle the problem immediately
5)Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season

Applicantion:




COMPANY PROFILE
PRESUN AGRO MACHINERY CO.,LTD is a professional manufacturer with development,
manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,
and about 1200 square meters as the office area in Hefei, Anhui province.
We have professional technical engineers and experts who have been working in grain drying field for
more than 10 years. With the development of our company, we successfully transferred into a listed
company in NEEQ in the April of 2017, our stock code:871356.

The company take full advantage of advanced technique, management, financing and service concept,
unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the
same time, we always research and develop products to meet different market and customer’s demand.
Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary
equipments are available,reaching a quicker grain input & output speed.
Our company always insist on”people foremost, service to farmers” as our management concept; “energy
conservation and environment protection” as our goals. Planning to bring our brand “” to the world.
We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
