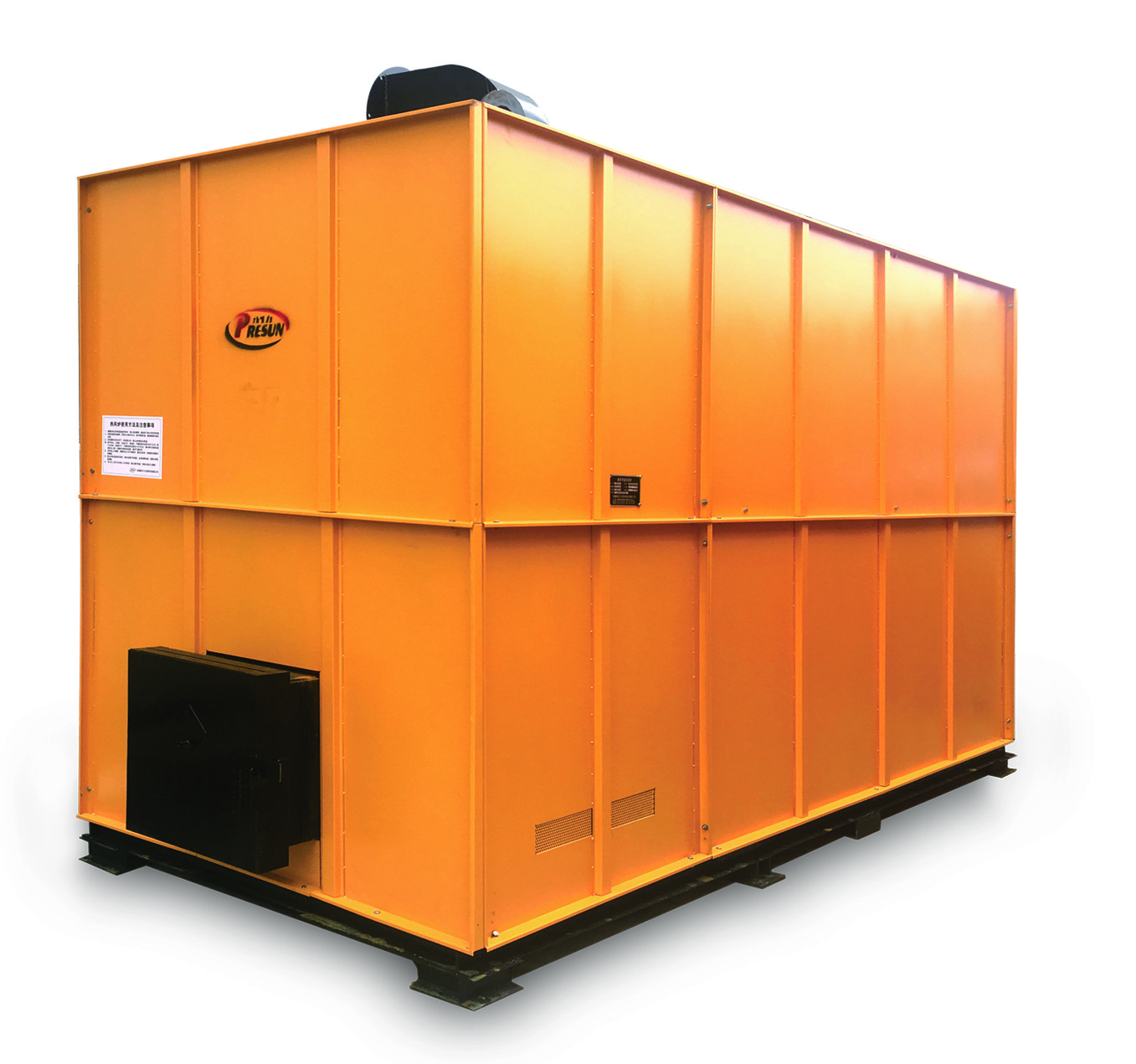

Biomass Quick Heating 500000 Kcalorie Rice Husk Furnace Stove

Biomass Quick Heating 500000 Kcalorie Rice Husk Furnace Stove

Brand Name:	PAM
Model Number:	XSL-50
MOQ:	1set
Price:	USD 8500-18000
Payment Terms:	L/C, T/T
Supply Ability:	100 SETS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Condition:

New

Fuel:

Firewood

Feeding Mode:

Manual

Heating Mode:

Indirect

Ignition Mode:

Manual

Product Name:

Rice Husk Burner

Packing:

Nuke Packing

Weight:

4000kg

Guaranty:

1 Year

Main Material:

Brick&cement

Packaging Details:

Appreance protection

Highlight:

500000 Kcalorie Rice Husk Stove

Biomass Firewood Rice Husk Furnace

500000 Kcalorie Husk Furnace Stove

Product Description

500,000 Kcalorie rice hull fire stove rice paddy drying furnace 500k kcalorie

Advantages of our biomass furnace

This rice husk biomass furnace is used for provinde heat source for grain dryer , it has following main characteristics:

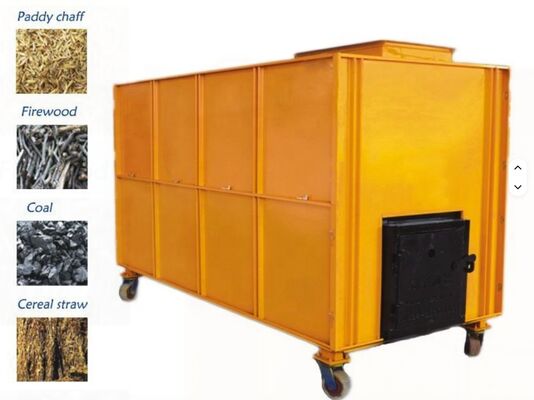

1, Adopt rice hull,firewood,straw,anthracite and other biomass energy as fuel which can reduce the drying cost ,It also can save the energy and protect the environment.

2, Heat up quickly and good thermal effects. It adopts indirect heating and automatic temperature control which can prevent excessive dying.

3, Adopt manual and automatic feeding device which is optional according to user's requirement.

Technical parameters

Model	XSL-45	XSL-60	XSL-90
Heating Mode	Indirect
Ignition Mode	Manual
Feeding Mode	Manual/Automatic
Heating Temperature	≤ 100℃
Heating Supply	450,000 Kcalorie	600,000 Kcalorie	900,000 Kcalorie
Biomass Fuel	Husk/Coal/Wood & Other Biomass Material
Husk Consumption	60~180 kg/hr	80~240 kg/hr	120~360 kg/hr
Input Voltage	3 Phase 220V/380V,50Hz
Power (kw)	4.5	5.2	6.2
Control Method	Automatic Control
Dimensions(mm)	350015002200	380015002520	500018002520
Safety Devices	Low temperature automatic alarm, Temperature automatic control function, Feeding system, Ash exhaust system, Air Damper
Supply Dryer Quantities	5HPX-15 3 sets	5HPX-15 4sets	5HPX-15 6 sets
	5HPX-20 2 sets	5HPX-20 3 sets	5HPX-20 4 sets
	5HPX-30 1 set	5HPX-30 2 sets	5HPX

The smallest furnace could supply 300,000 Kcal per hours,so it could drive at least one set 20 tons batch dryer

Biomass Quick Heating 500000 Kcalorie Rice Husk Furnace Stove 0

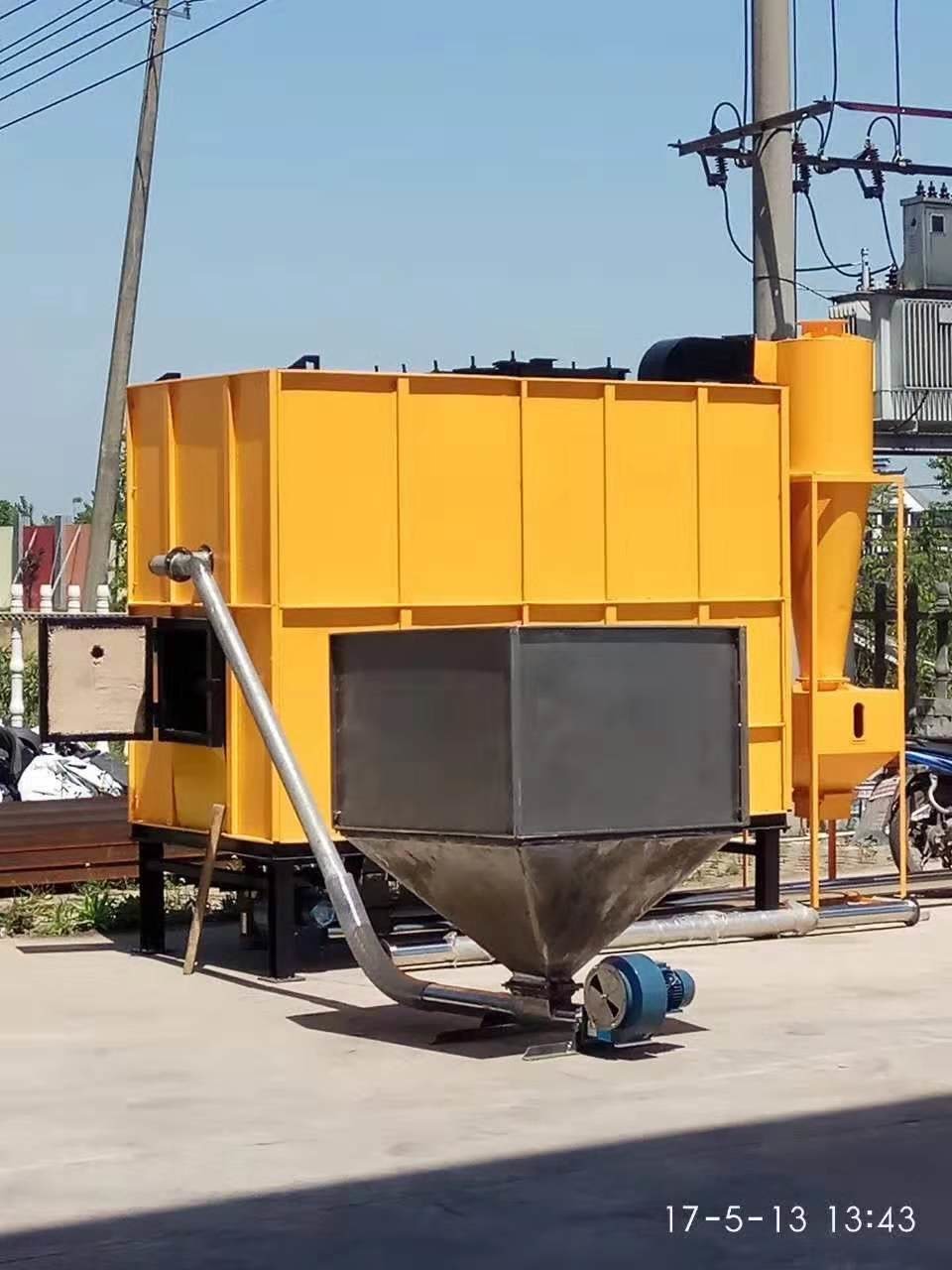

Equipment contained if choose husk as the fuel

Items	Descriptions

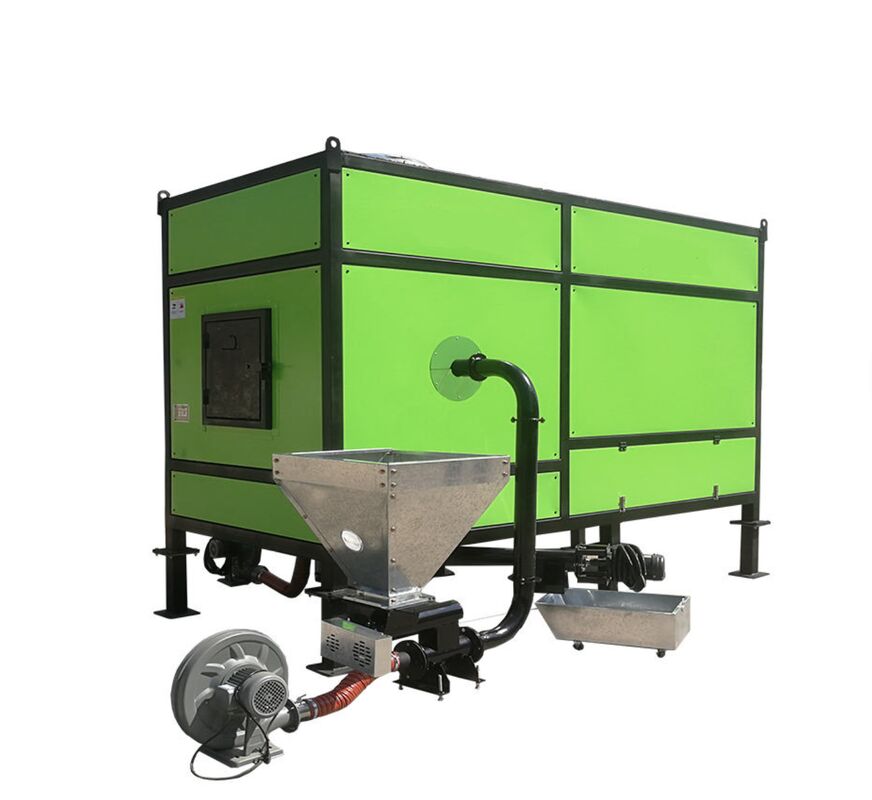

Auto Feeder system	One blower with one husk bin
Ash cleaner	One rotoary stick with one blower
cyclone	60mm diameters cyclone
Control system	PLC type control panel

Applications:

Biomass Quick Heating 500000 Kcalorie Rice Husk Furnace Stove 1

What We Can Offer

1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
