4.5kw Auto Feeder Indirect Heating Rice Husk Furnace

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCondition | New | Fuel | Rice Hull |
---|---|---|---|
Feeding Mode | Manual | Heating Mode | Indirect |
Ignition Mode | Manual | Product Name | Rice Husk Burner |
Highlight | Indirect Heating Rice Husk Furnace,Auto Feeder Rice Husk Furnace,Cyclone Rice Hull Burner |

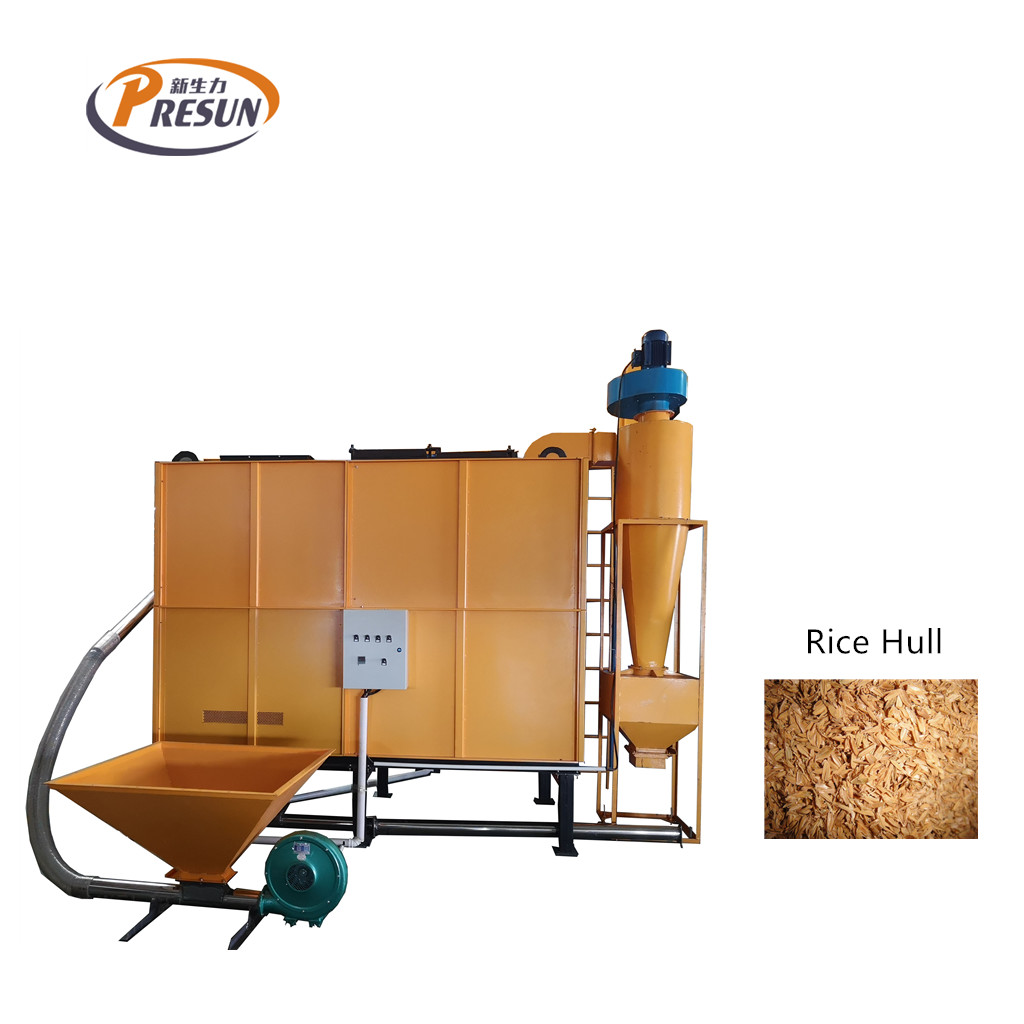

Indirect heating rice hull furnace with auto feeder,ash cleaner and cyclone rice hull burner suppliers
Advantages of our biomass furnace
1)Indirect heating system with hundreds of heat exchanger ductings

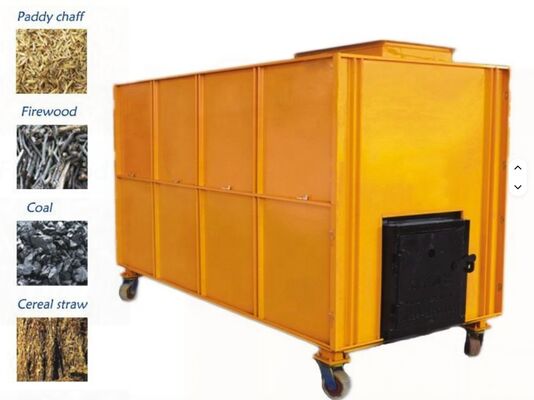

2)Enormous biomass material options,such as paddy husk,corn cob,firewood,coal and others
3)Combustion zone made of firebrick and cement,long durability and stability
4)Heat exchanger and combustion zone are desgined at same level,so could save the space

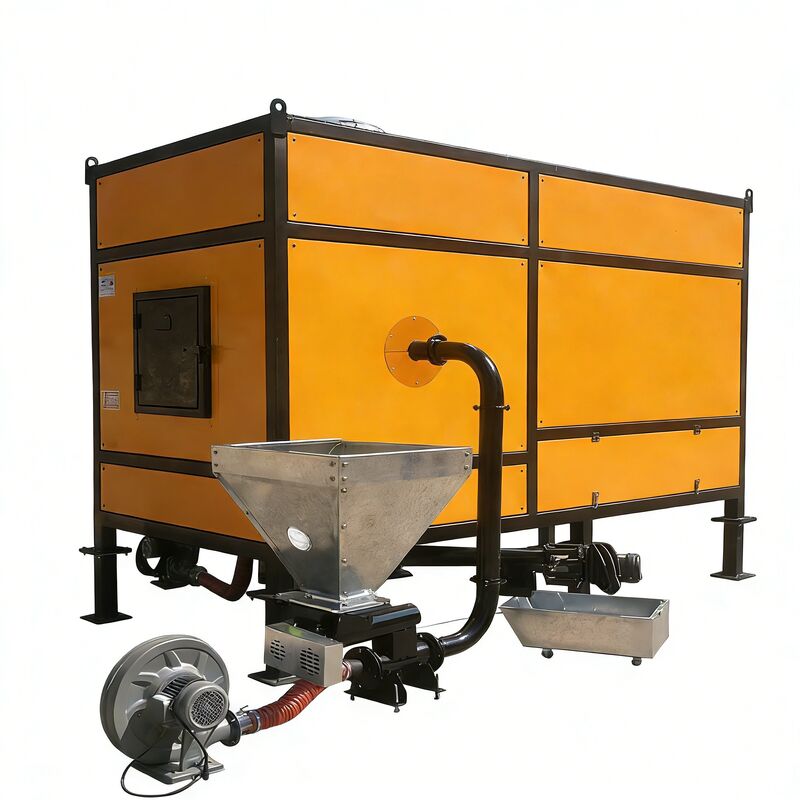

5)If choose paddy husk or biomass pallet,could working automatically with auto feeder,ash removal and cyclone(need to buy extra)
Technical parameters
Model | XSL-45 | XSL-60 | XSL-90 |
Heating Mode | Indirect | ||
Ignition Mode | Manual | ||
Feeding Mode | Manual/Automatic | ||
Heating Temperature | ≤ 100℃ | ||
Heating Supply | 450,000 Kcalorie | 600,000 Kcalorie | 900,000 Kcalorie |
Biomass Fuel | Husk/Coal/Wood & Other Biomass Material | ||
Husk Consumption | 60~180 kg/hr | 80~240 kg/hr | 120~360 kg/hr |
Input Voltage | 3 Phase 220V/380V,50Hz | ||
Power (kw) | 4.5 | 5.2 | 6.2 |
Control Method | Automatic Control | ||
Dimensions(mm) | 3500*1500*2200 | 3800*1500*2520 | 5000*1800*2520 |
Safety Devices | Low temperature automatic alarm, Temperature automatic control function, Feeding system, Ash exhaust system, Air Damper | ||
Supply Dryer Quantities | 5HPX-15 3 sets | 5HPX-15 4sets | 5HPX-15 6 sets |
5HPX-20 2 sets | 5HPX-20 3 sets | 5HPX-20 4 sets | |
5HPX-30 1 set | 5HPX-30 2 sets |
5HPX-30 3 sets |
The smallest furnace could supply 300,000 Kcal per hours,so it could drive at least one set 20 tons batch dryer
Equipment contained if choose husk as the fuel
Items | Descriptions |
Auto Feeder system | One blower with one husk bin |
Ash cleaner | One rotoary stick with one blower |
cyclone | 60mm diameters cyclone |
Control system | PLC type control panel |
Applications:
