Automatic Feeding 500,000 KCalorie Biomass Furnace Supplier From China

Brand Name:	PAM
Model Number:	XSL-45
MOQ:	1set
Price:	USD 7500-15000
Payment Terms:	L/C, T/T
Supply Ability:	150 SETS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Condition:

New

Fuel:

Rice Husk

Feeding Mode:

Manual

Heating Mode:

Indirect

Ignition Mode:

Manual

Product Name:

Rice Husk Burner

Packaging Details:

Appreance protection

Highlight:

rice hull stove

rice husk burner

Product Description

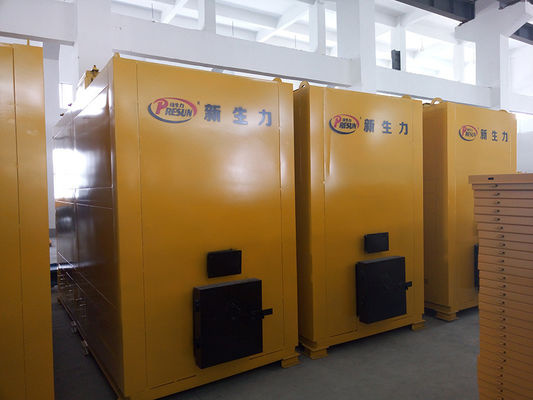

Automatic Feeding 500,000 KCalorie Biomass Furnace Supplier From China

Features

1. Adopt rice hull,firewood,straw,anthracite and other biomass energy as fuel which can reduce the drying cost ,It also can save the energy and protect the environment;

2. Heat up quickly and good thermal effects.It adopts indirect heating and automatic temperature control which can prevent excessive dying;

3. Adopt manualand automatic feeding device which is optional according to user's requirement;

Automatic Feeding 500,000 KCalorie Biomass Furnace Supplier From China 0

Technical parameters

Model	XSLD-45	XSLD-60	XSLD-90
Heating Mode	Indirect
Ignition Mode	Manual
Feeding Mode	Manual/Automatic
Heating Temperature	≤ 100℃
Heating Supply	450,000 Kcalorie	600,000 Kcalorie	900,000 Kcalorie
Biomass Fuel	Husk/Coal/Wood & Other Biomass Material
Husk Consumption	60~180 kg/hr	80~240 kg/hr	120~360 kg/hr
Input Voltage	3 Phase 220V/380V,50Hz
Power (kw)	4.5	5.2	6.2
Control Method	Automatic Control
Dimensions(mm)	350015002200	380015002520	500018002520
Safety Devices	Low temperature automatic alarm, Temperature automatic control function, Feeding system, Ash exhaust system, Air Damper
Supply Dryer Quantities	5HPX-15 3 sets	5HPX-15 4sets	5HPX-15 6 sets
	5HPX-20 2 sets	5HPX-20 3 sets	5HPX-20 4 sets
	5HPX-30 1 set	5HPX-30 2 sets	5HPX-30 3 sets
