450,000Kcal Grain Dryer Use Biomass Furnace with Automatic Temperature Control Function

Brand Name:	PAM
Model Number:	XSL-45
MOQ:	1set
Price:	USD 7500-12000
Payment Terms:	L/C, T/T
Supply Ability:	150 SETS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Condition:

New

Fuel:

Biomass

Feeding Mode:

Automatic

Heating Mode:

Indirect

Ignition Mode:

Manual

Heat:

450000Kcal

Packaging Details:

Wooden Case

Highlight:

biomass combustion systems

biomass burner

Product Description

450,000Kcal Grain Dryer Use Biomass Frunace with Automatic Temperature Control Function

Features

1. Adopt rice hull,firewood,straw,anthracite and other biomass energy as fuel which can reduce the drying cost ,It also can save the energy and protect the environment;

2. Heat up quickly and good thermal effects.It adopts indirect heating and automatic temperature control which can prevent excessive dying;

3. Adopt manualand automatic feeding device which is optional according to user's requirement;

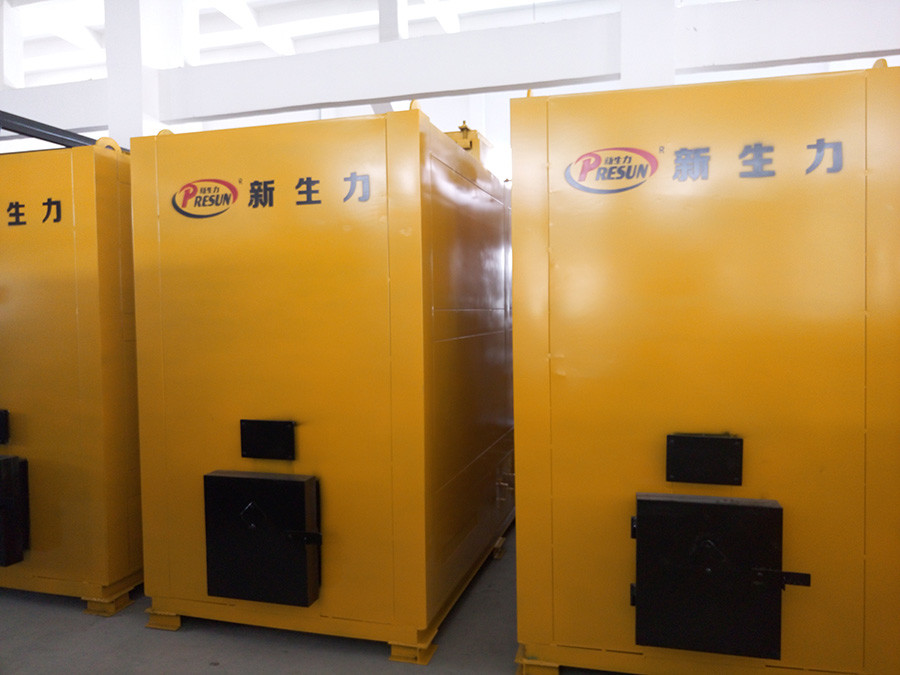

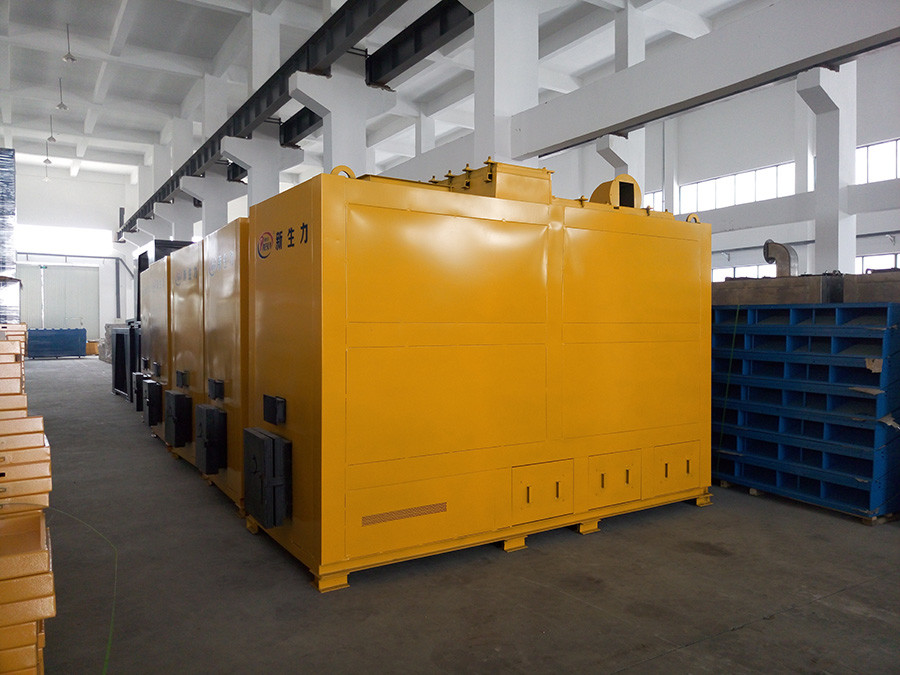

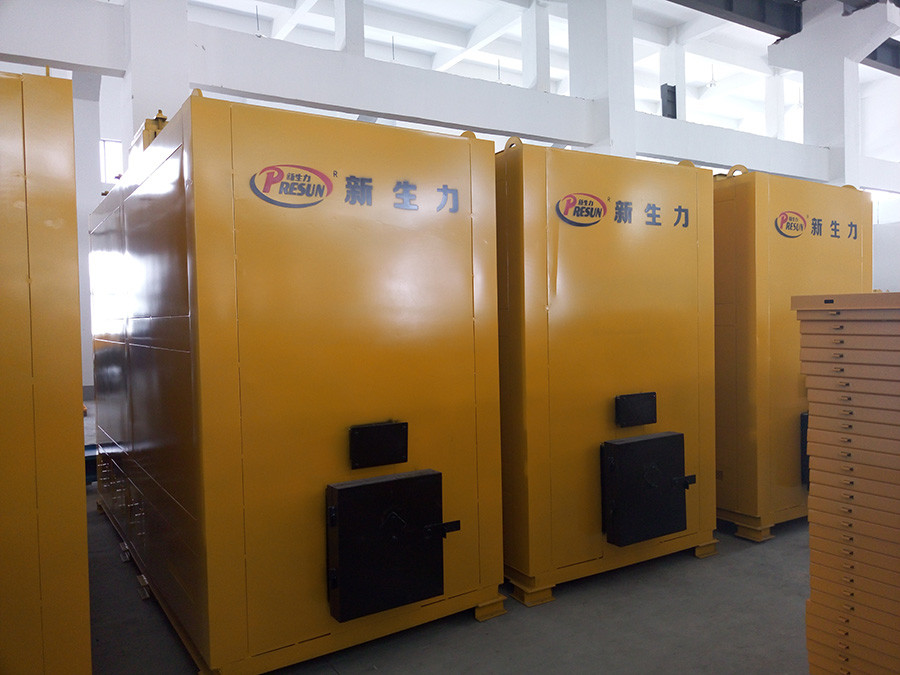

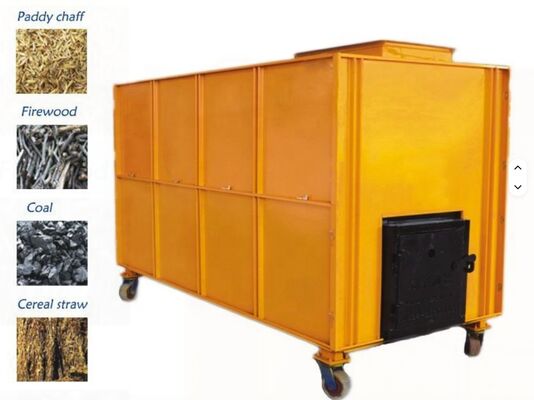

450,000Kcal Grain Dryer Use Biomass Furnace with Automatic Temperature Control Function 0

Technical parameters

Model	XSL-45	XSL-60	XSL-90
Heating Mode	Indirect
Ignition Mode	Manual
Feeding Mode	Manual/Automatic
Heating Temperature	≤ 100℃
Heating Supply	450,000 Kcalorie	600,000 Kcalorie	900,000 Kcalorie
Biomass Fuel	Husk/Coal/Wood & Other Biomass Material
Husk Consumption	60~180 kg/hr	80~240 kg/hr	120~360 kg/hr
Input Voltage	3 Phase 220V/380V,50Hz
Power (kw)	4.5	5.2	6.2
Control Method	Automatic Control
Dimensions(mm)	350015002200	380015002520	500018002520
Safety Devices	Low temperature automatic alarm, Temperature automatic control function, Feeding system, Ash exhaust system, Air Damper
Supply Dryer Quantities	5HPX-15 3 sets	5HPX-15 4sets	5HPX-15 6 sets
	5HPX-20 2 sets	5HPX-20 3 sets	5HPX-20 4 sets
	5HPX-30 1 set	5HPX-30 2 sets	5HPX-30 3 sets

Applications:

Widely used to all types of grain dryer machine,within only one furnace could drive 1-3 sets dryer,and it's total environment protection facility

Turnkey Drying Plant require at least one furnace, one dryer machine, one elevator, one pre cleaner machine; to reach higher capacity, need extra dryer machine and conveyor for loading and unloading, the whole drawing are like below :

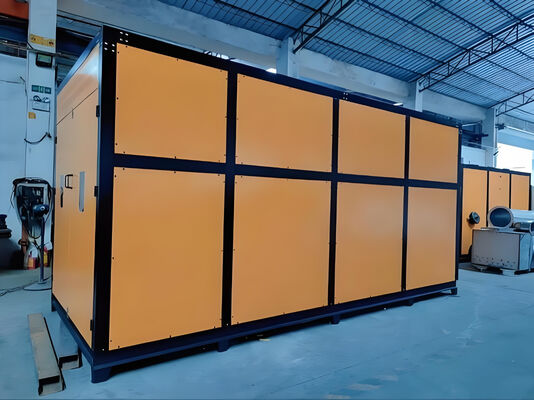

450,000Kcal Grain Dryer Use Biomass Furnace with Automatic Temperature Control Function 1
