Batch Type Paddy Dryer Machine with Mixed Flow Drying and Variable Cross Section Angular Boxes for Uniform Drying of Various Grains

Brand Name:	PAM
Model Number:	PMD-30
MOQ:	1set
Price:	USD 32500-38000 / set
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Type:

Batch Type

Usage:

Grain Drying

Condition:

New

Body Dimension:

2850*2970*13700mm

Overall Dimension:

5100*6321*14200mm

Power:

15.3kw

Packaging Details:

standard export wooden cases

Highlight:

Mixed Flow Drying Paddy Dryer Machine

Variable Cross Section Angular Boxes Grain Dryer

Uniform Drying of Various Grains Batch Type Dryer

Product Description

Presun Agro is leading supplier for grain and oil processing equipment in China and our products won several national patents and was official certified, the technical of oil press is continuous updating and the quality is reliable. Through years of scientific research and production practice, we have accumulated sufficient rice professional knowledge and practical experience. Our auto hydraulic oil press equipment are widely exporting to different countries like Nigeria, Myanmar, Guyana and other countries in Asia, South America, Africa, etc..

1. Product Description

The PMD series grain dryer is low temperature type circulation batch type grain dryer. The dryer machine is mainly used to dry rice, wheat, corn, soybean etc. The dryer machine is applicable to various combustion furnaces and coal, oil, firewood, straw of crops and husks can all be used as heat source. The machine is automatically controlled by computer. The drying process is dynamically automatic. Besides, the grain drying machine is equipped with automatic temperature measuring device and moisture detecting device, which greatly increase the automation and ensure the quality of the dried cereals. In addition to drying the paddy, wheat, it can also dry rapeseeds, buckwheat, corn, soybean, cottonseed, sunflower seeds, sorghum, mung bean and other seeds, as well as some rule grains and crops with good fluidity and moderate volume.

2. Features

1. Feeding and discharging grains from the top of dryer: Cancel the top auger, grain will directly flow to the drying part, avoid mechanical failure, lower power consumption and reduce the paddy broken rate;

2. The drying layer is combined by variable cross-section type angular boxes, mixed flow drying, high efficiency and uniform drying; Especially suitable for corn, parboiled rice and rapeseeds drying;

3. Resistance-type online moisture meter: Error rate is ±0.5 only (Deviation for raw paddy moisture is within 3% only), very accurate and reliable moisture meter;

4. The dryer comes with fully automatic computer controlling system, easy on operation, high automation;

5. The drying-layers adopt assembling mode, its strength is higher than the welding drying-layers, more convenient for maintenance and installation;

6. All the contact surfaces with grains in the drying-layers are designed with inclination, which can effectively offset the transverse force of grains, help to prolong the service life of the drying-layers;

7. The drying-layers has larger ventilation area, the drying is more uniform, and the utilization rate of hot air is significantly improved;

8. Twice dust removal function during drying process, the grains after drying are cleaner;

9. Multiple safety device, low failure rate, convenient on cleaning and long service time.

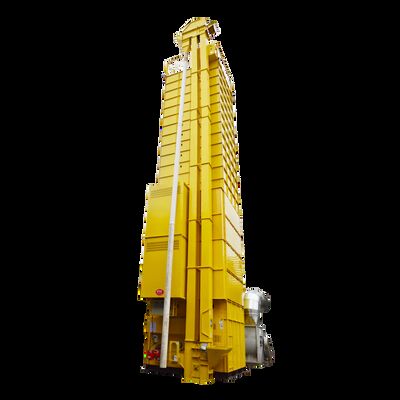

Batch Type Paddy Dryer Machine with Mixed Flow Drying and Variable Cross Section Angular Boxes for Uniform Drying of Various Grains 0

3. Technique Parameter

Model		PMD-30
Type		Batch type, Circulation, Low temperature, Mix-flow
Volume(t)		30.0(Based on paddy 560kg/m3)
		31.5(Based on maize 690kg/m3)
		31.5(Based on rapeseeds 690kg/m3)
Overall dimension(mm)(L×W×H)		7350×3721×14200
Structure weight(kg)		6450
Hot air source		Burner (diesel or natural gas); Hot air furnace (coal, husk, straw, biomass, etc.); Boiler (steam or thermal oil).
Blower motor(kw)		11.0
Total power of motors(kw)/ Voltage(v)		15.3/380
Time of feeding(min)	Paddy	54~64
	Maize	55~65
	Rapeseeds	60~70
Time of discharging(min)	Paddy	50~60
	Maize	51~61
	Rapeseeds	57~67
Moisture reduction rate	Paddy	0.4~1.0% per hour
	Maize	1.0~2.0% per hour
	Rapeseeds	0.4~1.2% per hour
Automatic control and safety device		Automatic moisture meter, automatic ignition, automatic stop, temperature control device, fault alarm device, full grain alarm device, electrical overload protection device, leakage protection device

4. Why Choose Us?
1.For more than a decade, with its excellent production technology and high-quality after-sales service, it has always been recognized and loved by users.
2.Obtained many official promotion appraisals and won many national patents. The technology is continuously updated, the products are mature and reliable, and the technology always leads.
3.High oil output, clean and pure oil, good market efficiency. Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency.
4.Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency.
5.Presun Agro can provide a full set of technical support and perfect after-sales service, which is the first choice of urban and rural oil mills and small and medium-sized refineries.

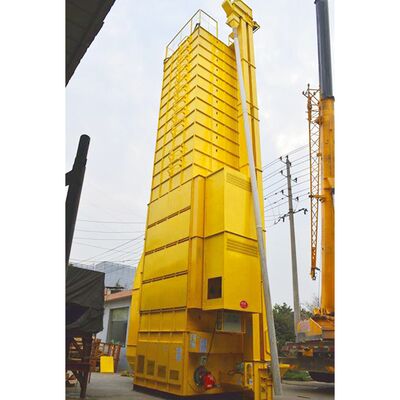

Batch Type Paddy Dryer Machine with Mixed Flow Drying and Variable Cross Section Angular Boxes for Uniform Drying of Various Grains 1
