20 Tons Capacity Corn Seed Dryer Machine with Low Temperature Circulating for Multi-Purpose Grain Drying

20 Tons Capacity Corn Seed Dryer Machine with Low Temperature Circulating for Multi-Purpose Grain Drying

Brand Name:	PAM
Model Number:	PGD-20
MOQ:	1set
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Type:

Batch Type

Usage:

Grain Drying

Condition:

New

Body Dimension:

2900*2260*12700mm

Air Consumption:

10000-14000 M3/h

Power:

21.7kw

Packaging Details:

standard export wooden cases

Highlight:

20 Tons Capacity Corn Seed Dryer Machine

Low Temperature Circulating Corn Dryer Machine

Multi-Purpose Grain Drying Grain Dryer Machine

Product Description


CORN SEED DRYER MACHINE WORKING PRINCIPLE

Put the corn seed into the dryer in batch then circulate orderly by the interaction of electric parts and strural parts. the hot air from the husk burner gets into the mixed-flow drying layer to across and heat the grain under the action of two electric fans. the air flows and takes off the moisture of the grain, then the exhaust gas is excluded out of the machine by the exhaust fan when the moisture reaching to the set value, the machine stops working.

Features:

1. One multi-purpose machine can dry rice , wheat , corn , peanut , soybean , sorghum and other food crops and their seeds.
2. Forced dispersing device and quantitative feeding cycle of positive and negative grain wheel, thin layer and large air volume, even grain drying, high drying efficiency.
3. Low temperature drying , good quality rice, high germination rate of seeds.

4. Large screw feeder, high strength nylon dustpan, stainless steel mesh plate, wear-resistant, anti-deformation, durable, do not hurt the grain.

5. Residual material cleaning device can easily remove grain residual material and prevent mixing.

Technical Parameters

Model	PGD-20
Loading capacity	25 Tons Corn Seed Dryer
Dimension	2500226011700mm
Drying Type	Low Temperature circulating Type
Power For Fan	7.5KW
Drying Rate	0.6~1.4%
Heat Consumption	<20,000 KCalorie
Weight	4,000KG
Standard Device	Moisture Meter,Conveyor,Fan

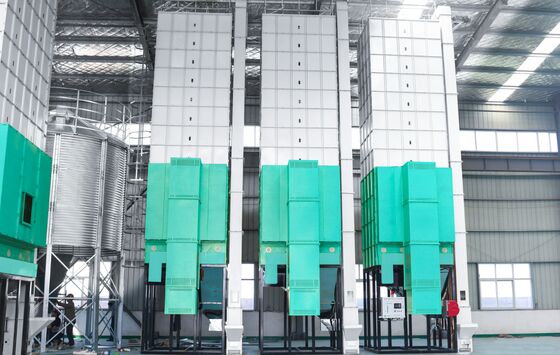

What's The Drying Plant Looks Like?
20 Tons Capacity Corn Seed Dryer Machine with Low Temperature Circulating for Multi-Purpose Grain Drying 0

Details

What We Can Offer

1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season

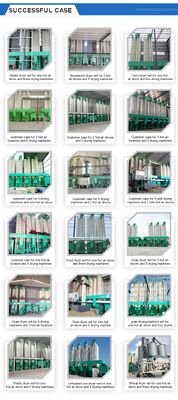

Customer Cases
