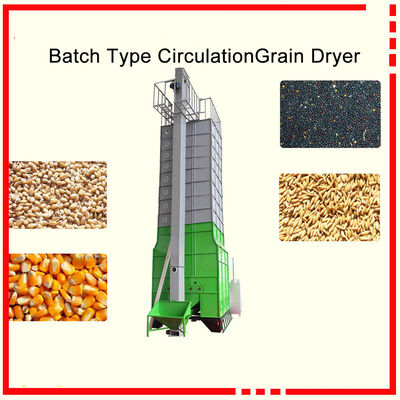

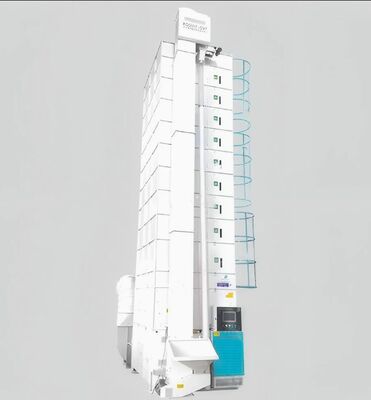

12 Tons Per Batch Low Temperature Circulating Corn Dryer Machine with Automatic Failure Alarm

Product Features
1. Fully automatic (automatic monitor over hot air, grain and moisture, automatic failure alarm); Automatic circulation, discharge and shutdown system;
2. The furnace can use coal, wood,biomass particles, crop straw, husk, petrol oil or gas, etc.
3. Lower cost. To reduce 5% moisture of 12 tons rice,it costs 11 usd if use coal as fuel, 6 usd if use husk(If your husk is free,the cost is only 2 usd ).
4. With good effect of grain.Vertical type dryer is a new design by adopting low temperature heating,which can keep original color and taste, shining surface,no sticky,low broken rate.
5.The feeding, circulation and discharge systems are combined with elevator.It has the characteristics of light weight and small area.
6. Use large spiral feeder, high strength nylon bucket, stainless steel board, wear-resisting, anti-deformation, durable and no hurt to grain.
7. With cleaning device, easy to remove grain remaining in case of mixture.
8. Easy installation, operation and maintenance
Working Principle:
The small corn dryer machine includes dryer machine elevator, belt conveyor, electric control cabinet, stove.
After cleaned, the grain is sent to the storage section at the top of dryer by elevator. The material level meter controls the feeding to ensure that the equipment is always in full load to improve efficiency.The grain runs in reverse direction with hot air in dryer to realize the whole process of preheating, drying, reversing, drying and cooling, and finally discharged by the belt conveyor at the discharge section.The blower sends used hot air to the collector for purification,so the hot air can be recycled to save fuel consumption.
In the drying process, the drying speed should be controlled. If dried or the cooled too fast, the rice will be easily burst.To ensure the drying quality of rice, the drying speed should not be controlled below 1.5% per hour. In addition,lower hot air temperature is necessary.If the hot air temperature is 38~40 oC, the bursting rate is less than 2%.The bursting is not only related to the hot air temperature, but also to the initial moisture content of rice.

IS IT ESSENTIAL TO INSTALL GRAIN DRYER MACHINE FOR YOUR MILL?

Definitely Yes,Cause...
1)Full time processing ability,get rid of bad weathers' interruption,like raining,storm,snowing and etc
2)Massive Drying Capacity,one batch could reach 20 tons capacity,if connected with 5 sets,100 tons per day is available
3)Low-cost running consumption,Biomass material/coal/gas/diesel are all available
4)Flexible installation method,one furnace could connect 3 to 4 dryers,to save the land space
5)High processing efficiency,mo blind drying section,all the material would keep to the same mositure rate,make them the same quality
6)Slow and careful auger,tiny broken and waste material during the circulation
7)Best return on Investment ratio,running one to two month,could get back the investment on the machine

TECHNICAL PARAMETERS












                                                      Furnace Burner Options

What We Can Offer

1)Whole turnkey project solution
included Pre-cleaning machine,elevator,input&outlet pipe,furnace and dryer
2)Plant designition service
supply you all the possibly area required,the instllation diagram for consideration
3)Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning the machine
4)Full time online service
24 hours online technique service,ensure to tackle the problem immediately
5)Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season

Drying Unit Diagram


Applicantion:
