Circulating batch type 35 tons paddy dryer machine intelligent automatic 35 tons paddy dryer
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Batch Type | Usage | Grain Drying |
|---|---|---|---|
| Condition | New | Body Dimension | 2900*2260*12700mm |
| Air Consumption | 10000-14000 M3/h | Power | 21.7kw |
Product Description
Circulating batch type 35 tons paddy dryer machine intelligent automatic 35 tons paddy dryer
35 Tons Paddy Dryer Main Features:
1. High drying efficiency: advanced mixed flow low-temperature circulation drying technology is adopted, and the hot air
temperature can be higher than that of cross flow type (5% higher than that specified in the national standard), so the drying speed is fast; Mixed flow drying is conducive to uniform heating of grain, optimization of ventilation area in drying section, customization of fan and grain flow speed and other parameters, and improvement of drying efficiency;
2. Good grain quality after drying: Based on the principle of mixed flow drying, the grain is in uniform contact with hot air,
the grain uniformity is good, the grain is under the alternating action of high and low temperature in the drying section, and the grain waist burst rate is low;
Flexible conveying: the lower conveying adopts belt conveying, the upper conveying uses gravity gravity flow of grain, there is no screen mesh in the drying section, and there is no mechanical damage in the whole drying process of grain.
3. Energy saving and environmental protection: the mixed flow drying structure has small grain thickness, low air flow
resistance, low fan power and low unit heat consumption, which is only half of the national standard and close to the
first-class energy consumption index;
A dust removal and impurity removal device authorized by the national invention patent is designed, which has good dust removal and impurity removal effect and clean grain after drying.
4. High reliability: the plates of all parts in contact with grains of the whole machine are thickened, and the weight of the
whole machine is 20% - 30% heavier than that of similar domestic models. The frequently worn parts of grains are made of wear-resistant stainless steel, and the service life of the whole machine is long;
5. High degree of automation: the 35 tons paddy dryer machine can be started with one key, dried automatically and monitored online, which can be unattended.
Optional, remote operation and maintenance management system can monitor the operating conditions and operation parameters of the equipment on the computer platform and mobile app, and can implement remote fault diagnosis and management. If you need this function, you need to communicate with us in advance.
Brief Introduction:
This 35 tons paddy dryer is our company new development project. Compared with other traditional products, it has the low cost, uniformity dry, high automation, simple operation and maintenance, loss broken rate. It applicable to grain, wheat and corn and so on. As a 20 years history manufacturer, we can provide customized service and good after-sales service.
How Did Presun Dryer Works
- Our 35 tons paddy dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface
- After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape
- When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again
- The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains
- Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target
- Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request
Technical parameters
|
Model Item |
5HPX-15 | 5HPX-20 | 5HPX-30 | 5HPX-35 | |||||
| Loading capacity(kg) | Paddy | 3,000~15,000 | 3,000~20,000 | 4,000~30,000 | 5,000~35,000 | ||||
| Corn | 3,800~18,500 | 3,800~24,600 | 5,000~36,400 | 6,000~42,000 | |||||
| Dimension L*W*H (mm) | 4321*2583*10000 | 4600*3263*10500 | 4600*3570*12700 | 5712*5000*12400 | |||||
| Net Weight | 3,000 | 4,200 | 5,500 | 8,000 | |||||
| Heat Source | Biomass Furnace/Gas Burner/Diesel Burner | ||||||||
| Power Consumption (kw) | 9.95 | 10.6 | 21.7 | 19.7 | |||||
| Input Voltage | 3 Phase 220V/380V,50Hz | ||||||||
| Husk Furnace | Type | Indirect | |||||||
| Ignition | Manual | ||||||||
| Function | Loading | 50~60(approx) | 50~60(approx) | 60~70(approx) | 60~70(approx) | ||||
| Discharge | 50~60(approx) | 50~60(approx) | 60~70(approx) | 60~70(approx) | |||||
| Drying Rate | 0.5-1.2 %/h | 0.5-1.2 %/h | 0.6-1.4 %/h | 0.5-1.2 %/h | |||||
| Standard Devices | Online moisture meter, Conveyor ,Discharge system, Buffer system, Elevator ,Suction fan, Temperature sensor | ||||||||
| Safety Devices | Overload device, Temperature control device, Control fuse, Leakage protection device, Air pressure switch | ||||||||

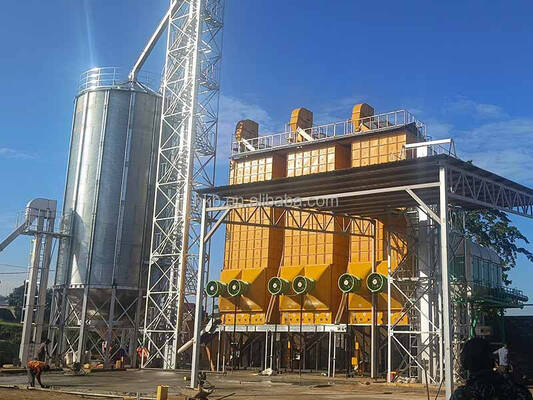

What's The 35 Ton Paddy Drying Plant Looks Like?
Details
What We Can Offer
1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
Where Are We From
Anhui Xingshengli Agricultural Machinery Co.,Ltd is a professional manufacturer with development,
manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,
and about 1200 square meters as the office area in Hefei, Anhui province.
We have professional technical engineers and experts who have been working in grain drying field for
more than 10 years. With the development of our company, we successfully transferred into a listed
company in NEEQ in the April of 2017, our stock code:871356.
The company take full advantage of advanced technique, management, financing and service concept,
unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the
same time, we always research and develop products to meet different market and customer’s demand.
Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary
equipments are available,reaching a quicker grain input & output speed.
Our company always insist on”people foremost, service to farmers” as our management concept; “energy
conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.
We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
