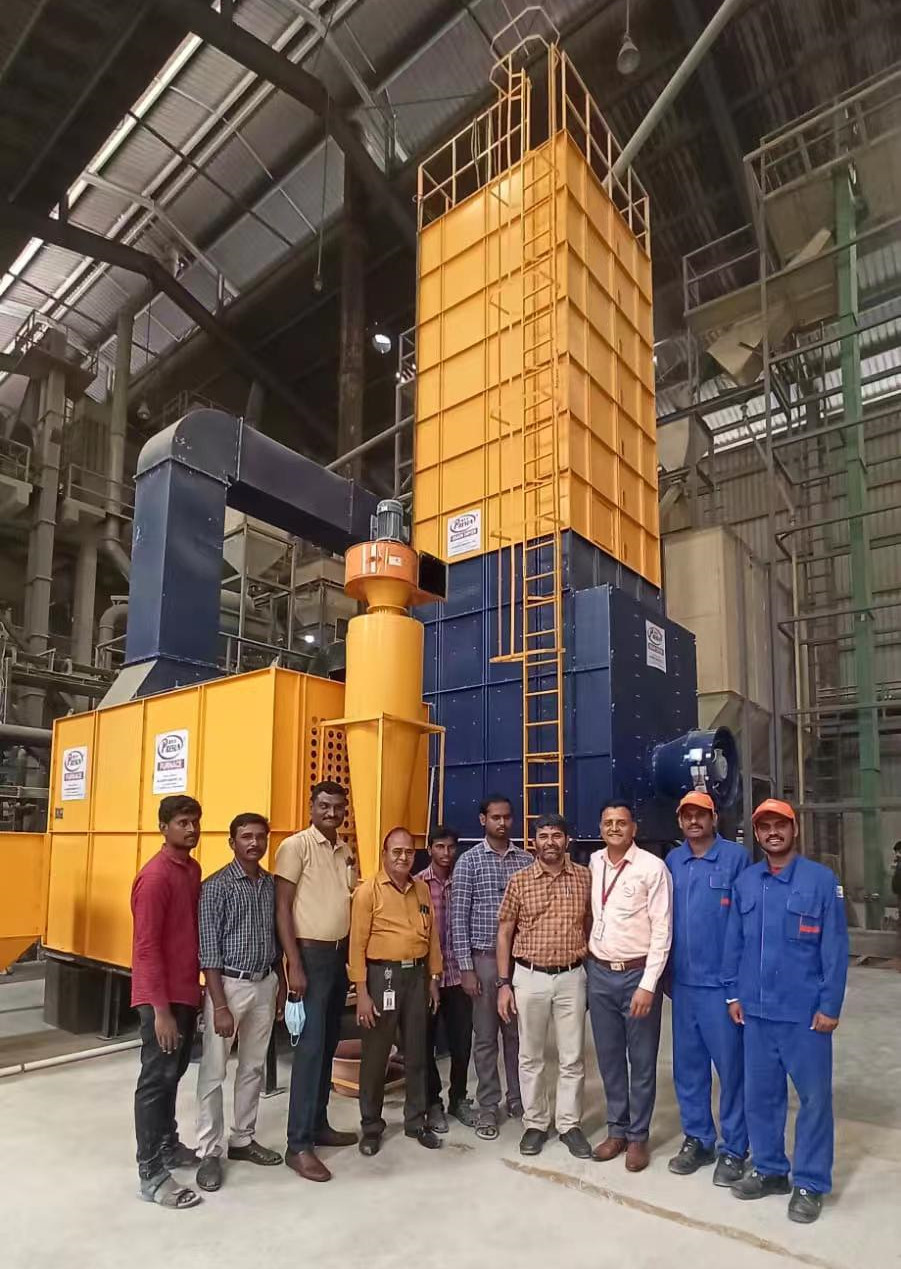

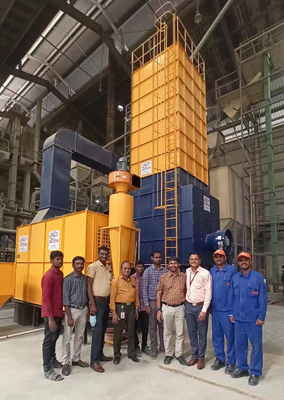

Energy Saving Grain Drying Equipment Rice Paddy Dryer Machine 10 Tons Per Day

Brand Name:	PAM
Model Number:	5HPX-15
MOQ:	1set
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Type:

Batch Type

Usage:

Grain Drying

Condition:

New

Body Dimension:

1850*4170*10200mm

Overall Dimension:

2500*4321*10200mm

Power:

9.95kw

Packaging Details:

standard export wooden cases

Highlight:

rice paddy dryer machine

Energy saving grain drying equipment

Product Description

Paddy Dryer Machine Feature:

Low speed mixing, anti-broken elevator, grain broken rate low, good drying quality

Vertical large-size four-slot and large amount of air drying layer with high drying efficiency

Automatic intelligent electronic control system, the operation is easier

Optional imported online grain moisture meter to achieve accurate detection of grain moisture

Multiple heating method and fuels options with low drying costs

Paddy Dryer Machine Working Principle :
1. Paddy Loading

The Paddy is raised to the top of the main engine silo through the hoist, and the grain is put into the drying box through the agitating device until it is full.

2. Running:

The elevator is running all the time. When the Paddy reaches the bottom under the action of self-weight, the elevator raises the Paddy to the top and dries slowly from top to bottom

3. Drying:

The hot air passes through the drying layer horizontally. The grain is fully contacted with the drying layer after heating, and achieved drying effect.

Essential Motor Lists :

No.	Description	Power	Qty	In Total
1	Elevator	2.2	1	2.2
2	Lower Screw Conveyor	1.5	1	1.5
3	Spreader	0.55	1	0.55
4	Dust Removal	0.55	1	0.55
5	Exhaust Blower	5.5	1	5.5
6	Rotary Valve	1.1	1	1.1


In Total			6	9.95
