Variable Cooling 400 Tons Top Dry Grain Bin Energy Saving

Place of Origin CHINA
Brand Name PRESUN
Certification ISO
Model Number 5HGT-500
Minimum Order Quantity 1set
Packaging Details standard export wooden cases
Delivery Time 20-30 working days if no customization parts
Payment Terms L/C, T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Continous Type Usage Grain Drying
Condition New Body Dimension 4000*5200*28000mm
Power Consumption 310kw
Highlight

400 Tons top dry grain bin

,

variable cooling top dry grain bin

,

400 Tons grain bin dryer

Leave a Message
Product Description

20 TPH Maize Dryer Plant 400 Tons Corn Dryer Plant Seller China Continous Dryer

Features:

  • The continuous flow dryer uses negative pressure, which will makes the drying more even and energy saving;
  • The direction of the air through the grain determines how effectively and homogenously the grain is dried, which is recognized as the most versatile and efficient drying principle for free flowing crops;
  • Air foils are placed in the opening of the exhaust channels to minimise turbulence and avoid small grains and light products from being sucked out by the exhaust fans. This makes it possible to use larger air volumes which result in optimal drying capacity in all crops;
  • The variable cooling zone makes it possible to configure the dryer to the exact drying and working conditions at all times. By utilising air and energy in the best way possible,the costs are reduced and the capacity is optimised;
  • The volumetric discharge section is designed with a series of sector valves. This discharge system gives a homogenous grain flow and helps reduce clogging by straw and foreign material.

Grain dryer flow chart drawing

Variable Cooling 400 Tons Top Dry Grain Bin Energy Saving 0

Parameters

Model WGH500
Handing capacity
(T/d)
500
Drying rate(%) 5~25%
Heating medium Clean hot blast
Hot-blast temprature(℃) 65~160
Most bearing temperature
of grains(℃)
55
Unevenness of drying(%) < 2
Added value of breaking rate(%) < 0.5
Heat consumption per unit
(kj/kg)
5000~7000
Coal consumption(standard coal)(kg/h) 180-800
Capacity According to different area,condition,decreased moisture and needs



What We Can Offer

1)Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2)Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3)Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4)Full time online service
24 hours online technique service,ensure to solve the problem immediately
5)Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season



Application

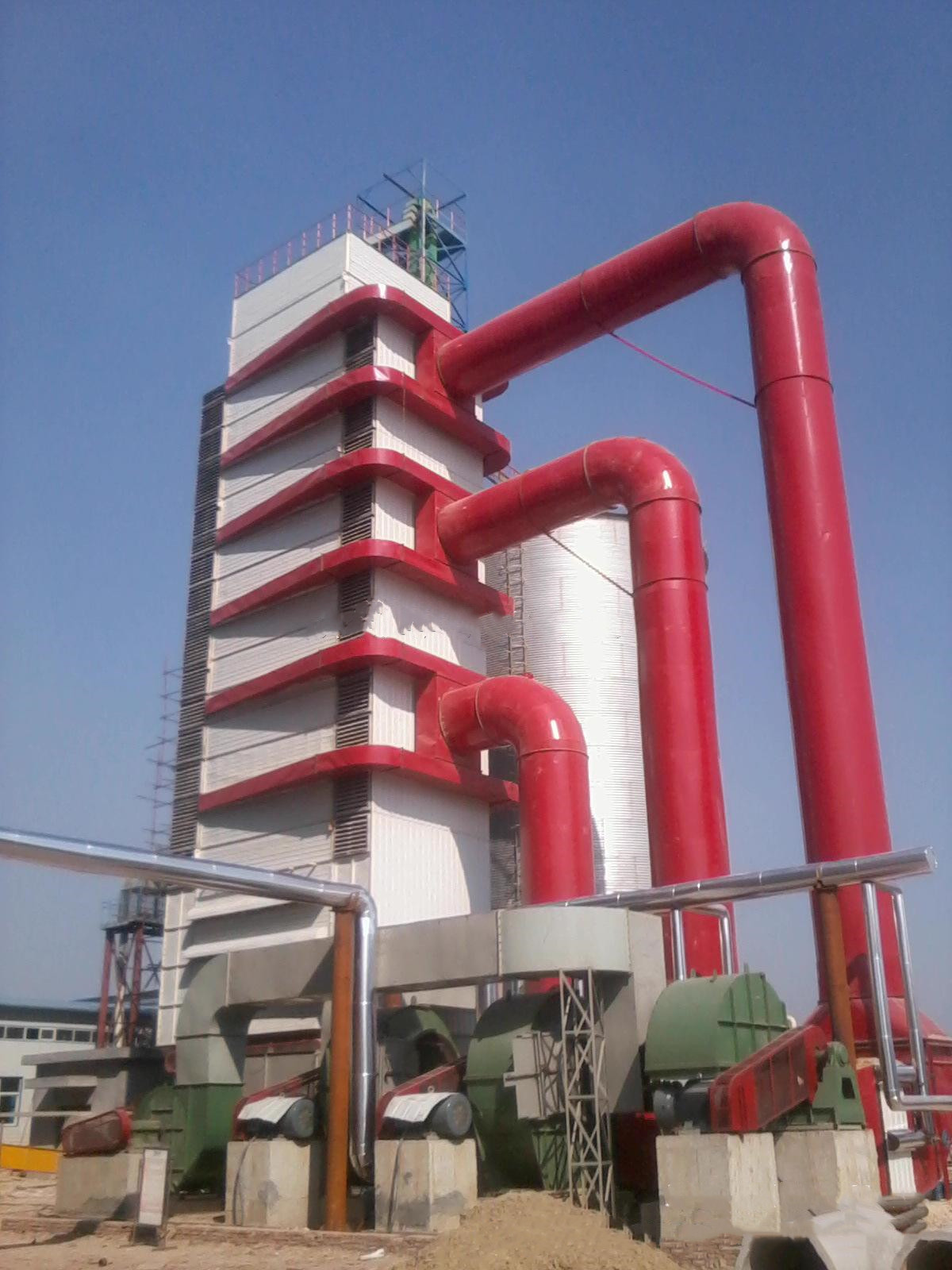

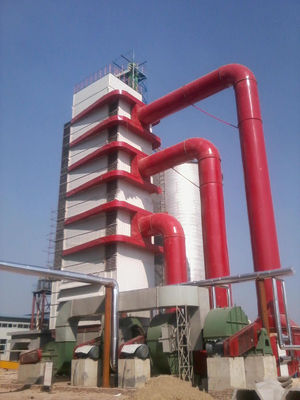

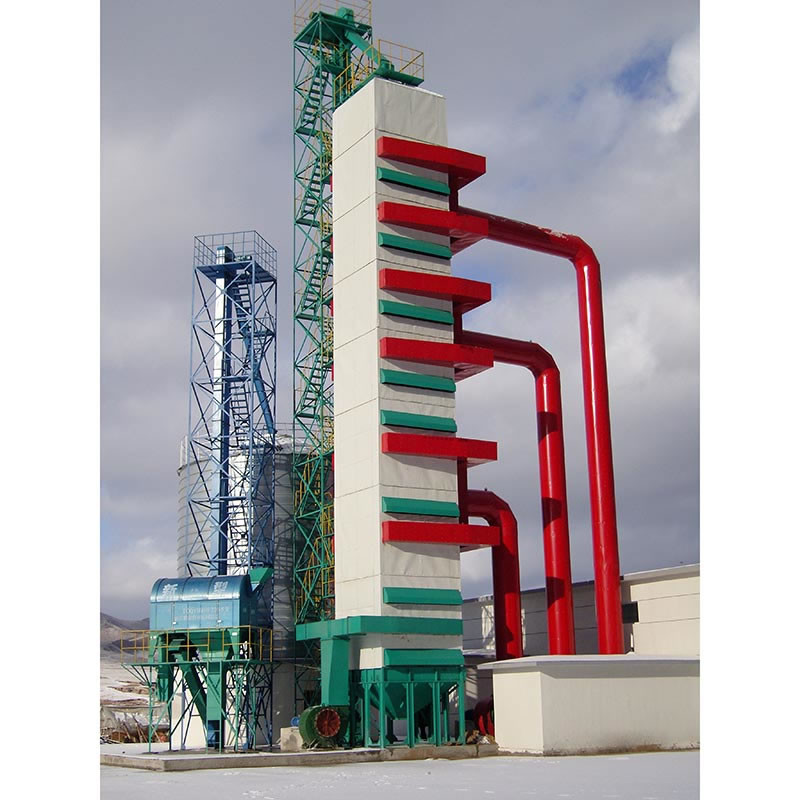

Variable Cooling 400 Tons Top Dry Grain Bin Energy Saving 1Variable Cooling 400 Tons Top Dry Grain Bin Energy Saving 2
