Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating

Place of Origin CHINA
Brand Name PRESUN
Certification ISO
Model Number 5HPX-30
Minimum Order Quantity 1set
Packaging Details standard export wooden cases
Delivery Time 5-8 working days if no customization parts
Payment Terms L/C, T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Batch Type Usage Grain Drying
Condition New Body Dimension 2900*2260*12700mm
Air Consumption 10000-14000 M3/h Power 19.7kw
Highlight

mechanical raw paddy dryer

,

Cyclonic furnace paddy dryer

,

Cyclonic furnace rice dryer machine

Leave a Message
Product Description

240 tons paddy dryer plant supplier 240 TPD paddy drying equipment seller

Presun Dryer Plant Features

1. Easy operation
Dryer plant could running automatically
2. Energy saving
Use husk as the fuel,consumption and cost is much lower compared with gas/diesel
3. Excellent drying result
Uniqe temperature control kit to make all dryer running at same temperature,paddy would comes at same quality
4. Enlarge profit outcome
Low temperature drying could reduce rice crack ratio,up to 70% white rice outlet,increased profit

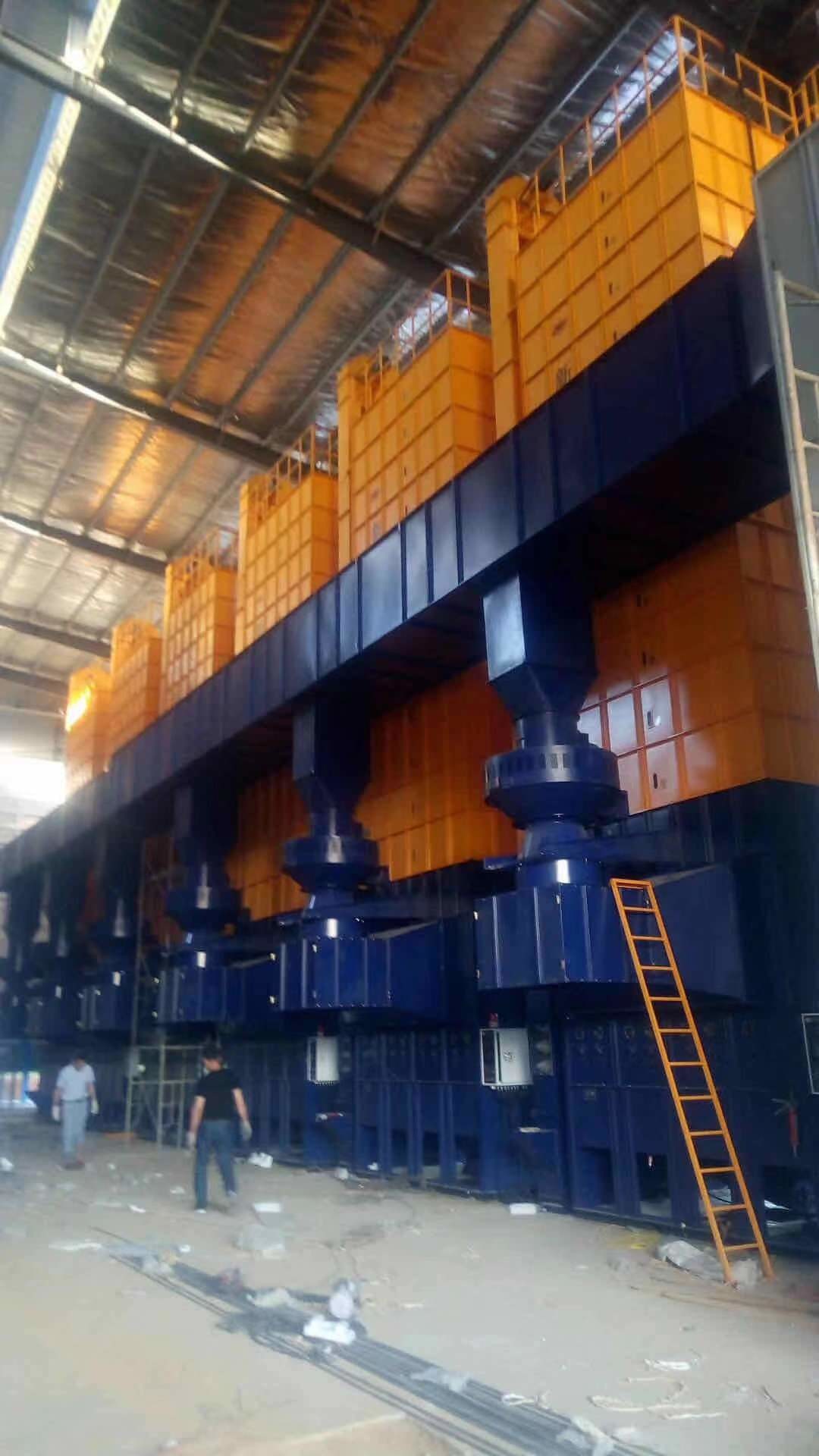

Rice Husk Furnace Drying Complex
For 240 Tons project,need two Husk furnace and 8 sets 30 tons dryerplant

                                             One 200 Furnace With 8-10 Sets 30 Tons Dryer

Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 0

Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 1Husk Feeder Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 2Husk Tank
Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 3Rice Husk Furnace SB-200 Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 4Main Control Box
Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 5Auto Ash Discharger Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 6Auxiliary Air Blower
Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 7Cyclone Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 8Hot Air Duct
Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 9Dumping Pit Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 10Bucket Elevator
Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 11Precleaner Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 12Bucket Elevator
Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 13Loading Chain Conveyor Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 1432 ton husk type grain dryer
Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 15Micro Air Adjuster Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 16Hot Air Damper
Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 17Unloading Chain Conveyor

Technical Parameters

                                                               30 Tons Dryer

Model 5HPX-30
Loading capacity 30 Tons
Dimension 2900*2260*12700mm
Drying Type Low Temperature circulating Type
Power For Fan 5.5*2KW
Drying Rate 0.6~1.4%Per Hour
Heat Consumption <30,000 KCalorie
Weight 6,000KG
Standard Device Moisture Meter,Conveyor,Fan















                                                      2 Million Kcal Husk Furnace

Model 5LXF-100 5LXF-150 5LXF-200
Burning Method Cyclonic Furnace
Fuel Husk
Heating Mode Indirect
Heat Exchange Square 88㎡ 138㎡ 188㎡
Heat Efficiency ≥80 % ≥80 % ≥80 %
Husk Consumption 100~265 kg/h 220~550 kg/h 260~650 kg/h
Ash Discharge kg/h 20-50 kg/h 40-95 kg/h 45-110 kg/h
Dimension (mm) 3200*4500*2850 5900*6430*8520 6790*6560*9250
Power (kw) 9.05 17.55 21.05
Weight (kg) 12000 25000 30000
Safety Devices Abnormal combustion sensor, Flame sensor, Automatic abnormal safe guard, Thermal relay, Rotation sensor, Control fuse
Supply Dryer Quantities 5HPX-15 5 sets 5HPX-15 7 sets 5HPX-15 9 sets
5HPX-20 4 sets 5HPX-20 7 sets 5HPX-20 9 sets
5HPX-30 2 sets 5HPX-30 5 sets 5HPX-30 6 sets

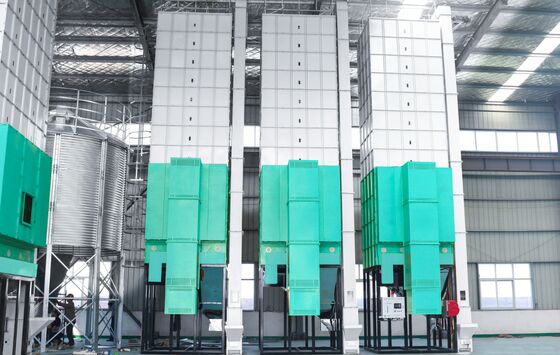

Application

Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 18Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 19



What We Can Offer

1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season





Company Profile

Cyclonic Furnace Mechanical Rice Dryer Machine Low Temperature Circulating 20

Anhui Xingshengli Agricultural Machinery Co.,Ltd is a professional manufacturer with development,

manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,

and about 1200 square meters as the office area in Hefei, Anhui province.


We have professional technical engineers and experts who have been working in grain drying field for

more than 10 years. With the development of our company, we successfully transferred into a listed

company in NEEQ in the April of 2017, our stock code:871356.



The company take full advantage of advanced technique, management, financing and service concept,

unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the

same time, we always research and develop products to meet different market and customer’s demand.

Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary

equipments are available,reaching a quicker grain input & output speed.

Our company always insist on”people foremost, service to farmers” as our management concept; “energy

conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.

We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
