ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder

Place of Origin CHINA
Brand Name PRESUN
Certification ISO
Model Number 5HPX-20
Minimum Order Quantity 1set
Packaging Details standard export wooden cases
Delivery Time 5-8 working days if no customization parts
Payment Terms L/C, T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Batch Type Usage Grain Drying
Condition New Body Dimension 2500*2260*11700mm
Air Consumption 10000-14000 M3/h Power 11.7kw
Highlight

400 TPD Paddy Dryer Machine

,

ISO Paddy Dryer Machine

,

ISO paddy parboiling and dryer

Leave a Message
Product Description

400 tons paddy dryer plant supplier 400 TPD paddy rice dryer plant

Dryer Features

1. One machine multi-purpose, can dry rice, wheat, corn, peanuts, soybeans.Sorghum and other food crops and their seeds.
2. Forced dispersing device and quantitative feeding cycle of positive and negative grain discharge, thin layer and large air flow, uniform grain drying, high drying efficiency.
3. Low temperature drying, good quality rice, high germination rate of seeds.
4. Adopt large spiral feeder, high strength nylon dustpan, stainless steel net plate, wear-resisting, anti-deformation, durable and don't hurt grain.
5. Residual material cleaning device, easy to remove grain residual material, prevent mixing.


Rice Husk Furnace Drying Complex
For 400 Tons project,need two Husk furnace and 20 sets 20 tons dryer,one furnace drive 10 sets dryer,would need two plant

                                             One 200 Furnace With 10 Sets 20 Tons Dryer

ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 0

ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 1Husk Feeder ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 2Husk Tank
ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 3Rice Husk Furnace SB-200 ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 4Main Control Box
ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 5Auto Ash Discharger ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 6Auxiliary Air Blower
ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 7Cyclone ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 8Hot Air Duct
ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 9Dumping Pit ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 10Bucket Elevator
ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 11Precleaner ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 12Bucket Elevator
ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 13Loading Chain Conveyor ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 1432 ton husk type grain dryer
ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 15Micro Air Adjuster ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 16Hot Air Damper
ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 17Unloading Chain Conveyor

Technical Parameters

                                                               20 Tons Dryer

Model 5HPX-20
Loading capacity 20 Tons
Dimension 2500*2260*11700mm
Drying Type Low Temperature circulating Type
Power For Fan 5.5 KW
Drying Rate 0.6~1.2%Per Hour
Heat Consumption <20,000 KCalorie
Weight 4,000KG
Standard Device Moisture Meter,Conveyor,Fan















                                                      2 Million Kcal Husk Furnace

Model 5LXF-100 5LXF-150 5LXF-200
Burning Method Cyclonic Furnace
Fuel Husk
Heating Mode Indirect
Heat Exchange Square 88㎡ 138㎡ 188㎡
Heat Efficiency ≥80 % ≥80 % ≥80 %
Husk Consumption 100~265 kg/h 220~550 kg/h 260~650 kg/h
Ash Discharge kg/h 20-50 kg/h 40-95 kg/h 45-110 kg/h
Dimension (mm) 3200*4500*2850 5900*6430*8520 6790*6560*9250
Power (kw) 9.05 17.55 21.05
Weight (kg) 12000 25000 30000
Safety Devices Abnormal combustion sensor, Flame sensor, Automatic abnormal safe guard, Thermal relay, Rotation sensor, Control fuse
Supply Dryer Quantities 5HPX-15 5 sets 5HPX-15 7 sets 5HPX-15 9 sets
5HPX-20 4 sets 5HPX-20 7 sets 5HPX-20 9 sets
5HPX-30 2 sets 5HPX-30 5 sets 5HPX-30 6 sets

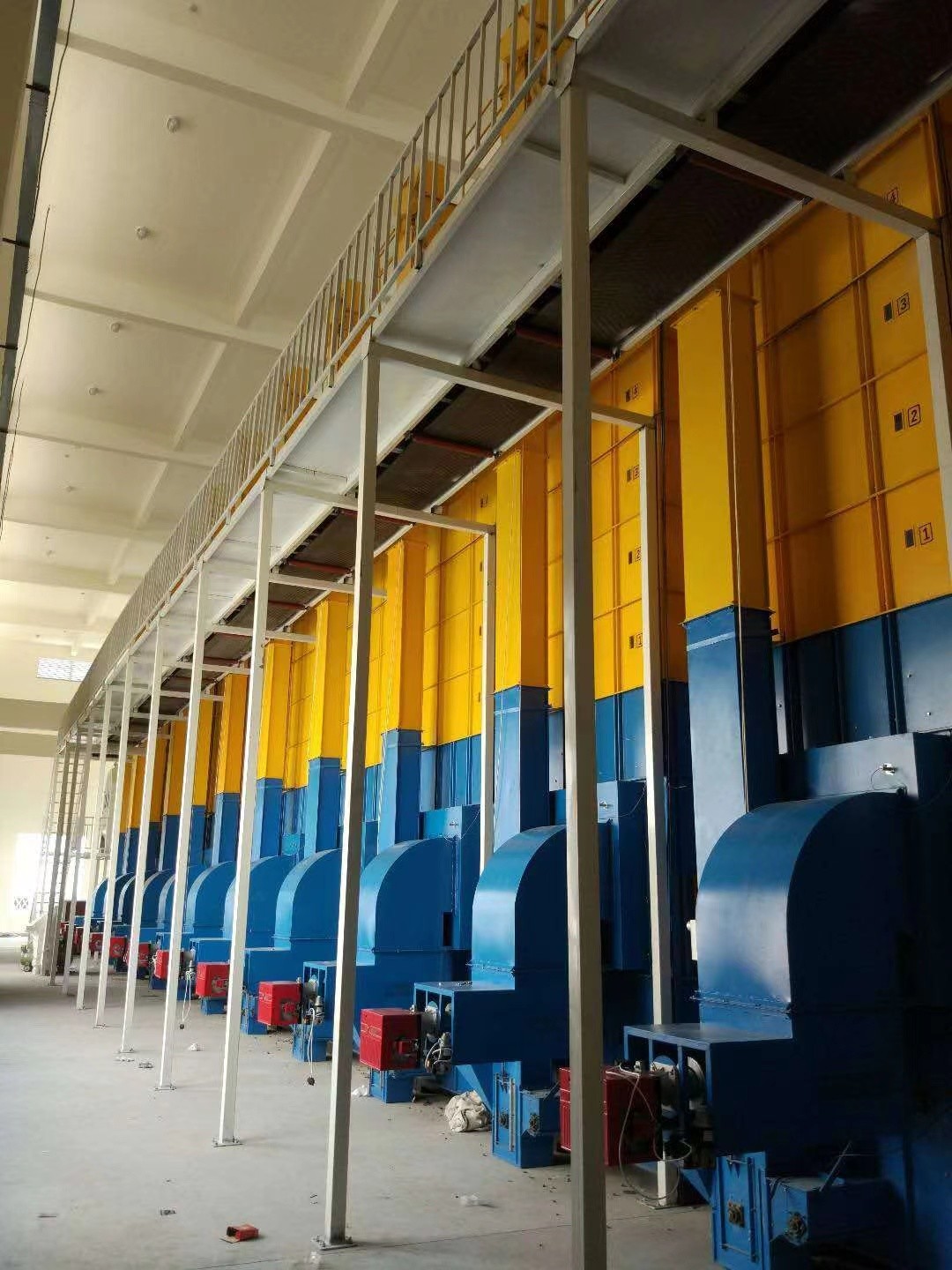

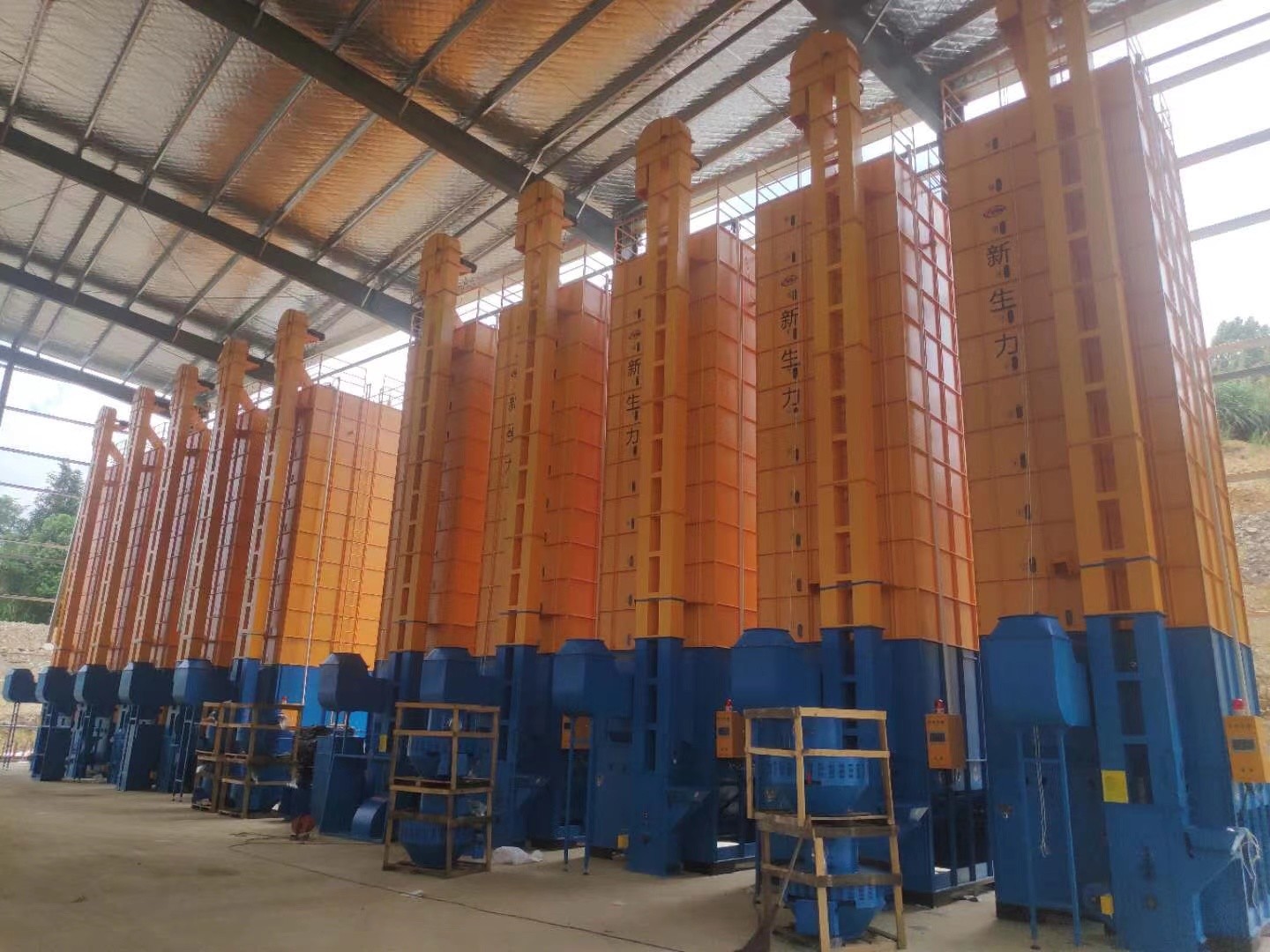

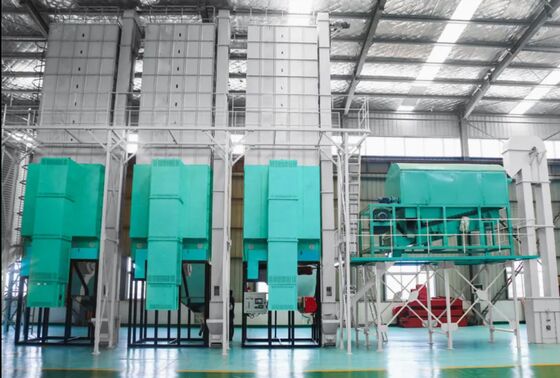

Application

ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 18ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 19



What We Can Offer

1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season





Company Profile

ISO 400 TPD Paddy Dryer Machine With Large Spiral Feeder 20

Anhui Xingshengli Agricultural Machinery Co.,Ltd is a professional manufacturer with development,

manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,

and about 1200 square meters as the office area in Hefei, Anhui province.


We have professional technical engineers and experts who have been working in grain drying field for

more than 10 years. With the development of our company, we successfully transferred into a listed

company in NEEQ in the April of 2017, our stock code:871356.



The company take full advantage of advanced technique, management, financing and service concept,

unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the

same time, we always research and develop products to meet different market and customer’s demand.

Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary

equipments are available,reaching a quicker grain input & output speed.

Our company always insist on”people foremost, service to farmers” as our management concept; “energy

conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.

We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
