Constant Temperature Husk Furnace Rice Dryer Machine for grains

Place of Origin CHINA
Brand Name PRESUN
Certification ISO
Model Number 5HPX-30
Minimum Order Quantity 1set
Packaging Details standard export wooden cases
Delivery Time 5-8 working days if no customization parts
Payment Terms L/C, T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Batch Type Usage Grain Drying
Condition New Body Dimension 2900*2260*12700mm
Air Consumption 10000-14000 M3/h Power 19.7kw
Highlight

husk furnace rice dryer machine

,

Constant temperature rice dryer machine

,

Constant temperature paddy dryer

Leave a Message
Product Description

Automatic paddy dryer plant 300 tons per batch rice dryer project with husk furnace

Rice Husk Furnace Drying Complex
‧ Easy operation-One operator can manage thousands of tons of grains per day.
‧ Constant hot air temperature.
‧ Unique patented completed combustion technology.

                                             One 200 Furnace With 10 Sets 30 Tons Dryer

Constant Temperature Husk Furnace Rice Dryer Machine for grains 0

Constant Temperature Husk Furnace Rice Dryer Machine for grains 1Husk Feeder Constant Temperature Husk Furnace Rice Dryer Machine for grains 2Husk Tank
Constant Temperature Husk Furnace Rice Dryer Machine for grains 3Rice Husk Furnace SB-200 Constant Temperature Husk Furnace Rice Dryer Machine for grains 4Main Control Box
Constant Temperature Husk Furnace Rice Dryer Machine for grains 5Auto Ash Discharger Constant Temperature Husk Furnace Rice Dryer Machine for grains 6Auxiliary Air Blower
Constant Temperature Husk Furnace Rice Dryer Machine for grains 7Cyclone Constant Temperature Husk Furnace Rice Dryer Machine for grains 8Hot Air Duct
Constant Temperature Husk Furnace Rice Dryer Machine for grains 9Dumping Pit Constant Temperature Husk Furnace Rice Dryer Machine for grains 10Bucket Elevator
Constant Temperature Husk Furnace Rice Dryer Machine for grains 11Precleaner Constant Temperature Husk Furnace Rice Dryer Machine for grains 12Bucket Elevator
Constant Temperature Husk Furnace Rice Dryer Machine for grains 13Loading Chain Conveyor Constant Temperature Husk Furnace Rice Dryer Machine for grains 1432 ton husk type grain dryer
Constant Temperature Husk Furnace Rice Dryer Machine for grains 15Micro Air Adjuster Constant Temperature Husk Furnace Rice Dryer Machine for grains 16Hot Air Damper
Constant Temperature Husk Furnace Rice Dryer Machine for grains 17Unloading Chain Conveyor

Technical Parameters

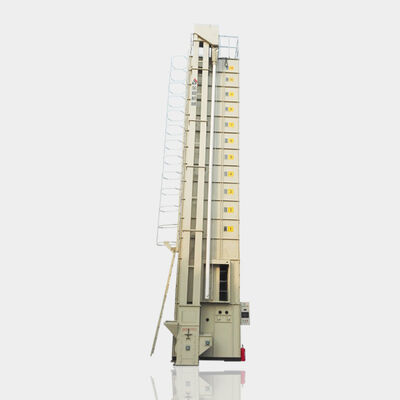

                                                               30 Tons Dryer

Model 5HPX-30
Loading capacity 30 Tons
Dimension 2900*2260*12700mm
Drying Type Low Temperature circulating Type
Power For Fan 5.5 KW*2
Drying Rate 0.6~1.4%Per Hour
Heat Consumption <30,000 KCalorie
Weight 6,000KG
Standard Device Moisture Meter,Conveyor,Fan















                                                      2 Million Kcal Husk Furnace

Model 5LXF-100 5LXF-150 5LXF-200
Burning Method Cyclonic Furnace
Fuel Husk
Heating Mode Indirect
Heat Exchange Square 88㎡ 138㎡ 188㎡
Heat Efficiency ≥80 % ≥80 % ≥80 %
Husk Consumption 100~265 kg/h 220~550 kg/h 260~650 kg/h
Ash Discharge kg/h 20-50 kg/h 40-95 kg/h 45-110 kg/h
Dimension (mm) 3200*4500*2850 5900*6430*8520 6790*6560*9250
Power (kw) 9.05 17.55 21.05
Weight (kg) 12000 25000 30000
Safety Devices Abnormal combustion sensor, Flame sensor, Automatic abnormal safe guard, Thermal relay, Rotation sensor, Control fuse
Supply Dryer Quantities 5HPX-15 5 sets 5HPX-15 7 sets 5HPX-15 9 sets
5HPX-20 4 sets 5HPX-20 7 sets 5HPX-20 9 sets
5HPX-30 2 sets 5HPX-30 5 sets 5HPX-30 6 sets

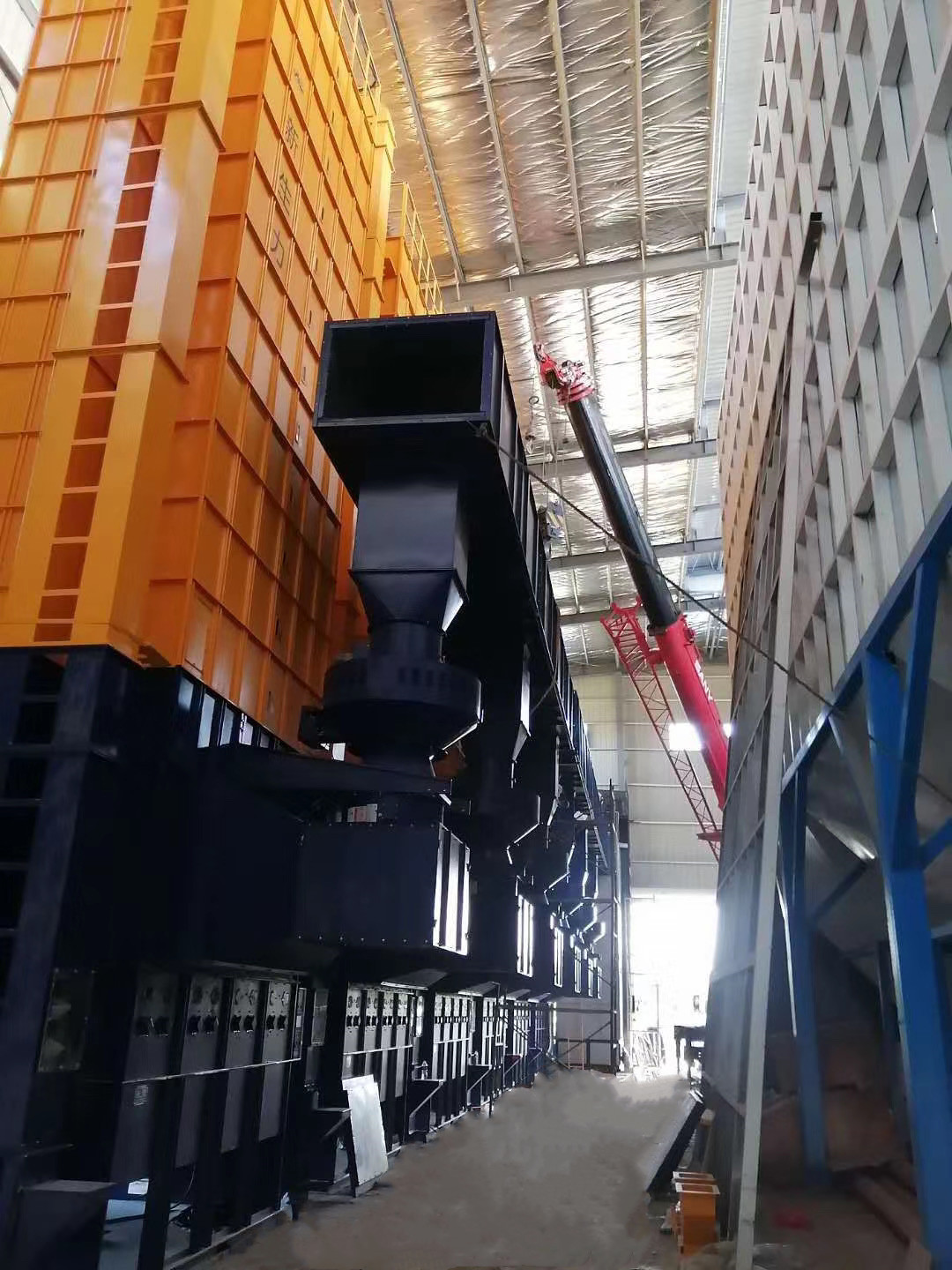

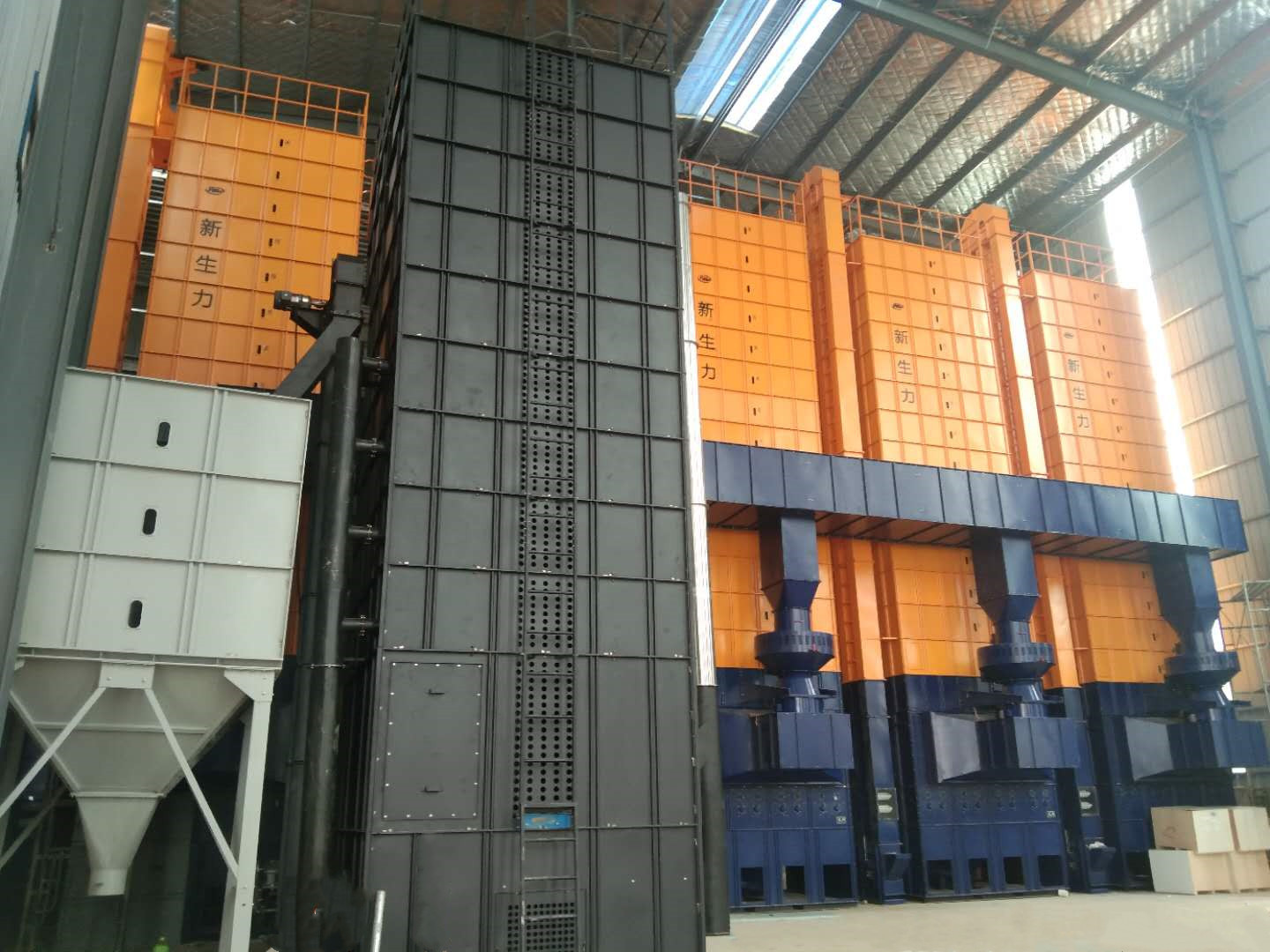

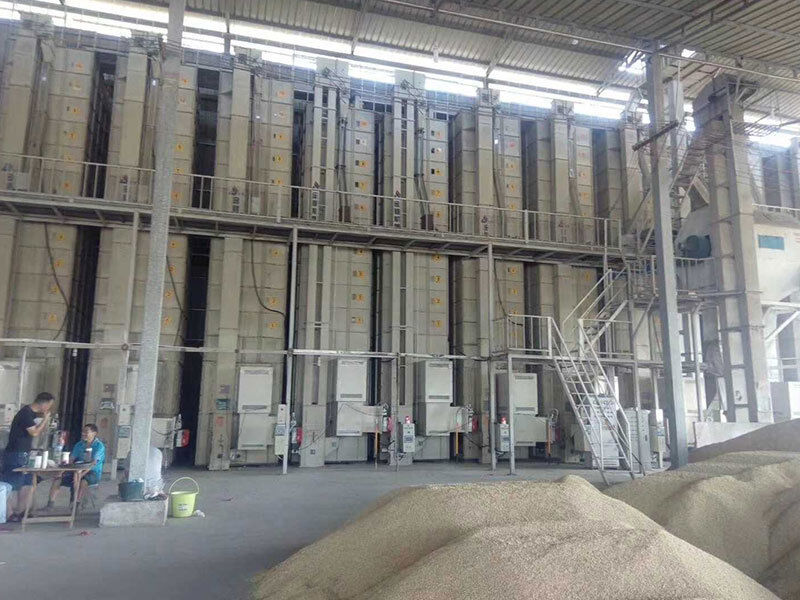

Application

Constant Temperature Husk Furnace Rice Dryer Machine for grains 18Constant Temperature Husk Furnace Rice Dryer Machine for grains 19



What We Can Offer

1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
