21.7kw 30 Tons Tower Maize Drying Machine Stainless Steel Corrosion Resistance

Place of Origin CHINA
Brand Name PRESUN
Certification ISO
Model Number 5HPX-30
Minimum Order Quantity 1set
Price USD 38000-45000 / set
Packaging Details standard export wooden cases
Delivery Time 5-8 working days if no customization parts
Payment Terms L/C, T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Batch Type Usage Grain Drying
Drying Zone Stainless Steel Body Dimension 2900*2260*12700mm
Air Consumption 10000-14000m3/h Power 21.7kw
Guaranty 1 Yeat Gross Weight 6500 Kg
Highlight

30 tons Maize tower dryer

,

30 tons Maize Drying Machine

,

21.7kw Maize Drying Machine

Leave a Message
Product Description

30 tons maize tower dryer corn dryer machine manufacturer in Java timur

Technical Parameters:

1. The drying layer stencil is made of stainless steel, which effectively improves the wear resistance and corrosion resistance and prolongs the service life of the equipment.
2. Exclusive design of the bottom cleaning device, which can be fully opened for cleaning, low residue and prevent cross-mixing.
3. The row-rolling wheel pressure roller adopts a plane bearing device, which is durable and has low noise.
4. Spiral cross steering gear is used inside, which is not easy to damage and has low noise.
Model 5HPX-30
Loading capacity 30Tons
Dimension 2900*2260*12700mm
Drying Type Low Temperature circulating Type
Power For Fan 5.5KW
Drying Rate 0.6~1.4%
Heat Consumption <30,000 KCalorie
Weight 6,500KG
Standard Device Moisture Meter,Conveyor,Fan

















How Did This Dryer Work?

1)Our dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface

2)After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape

3)When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again

4)The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains

5)Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target

6)Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request

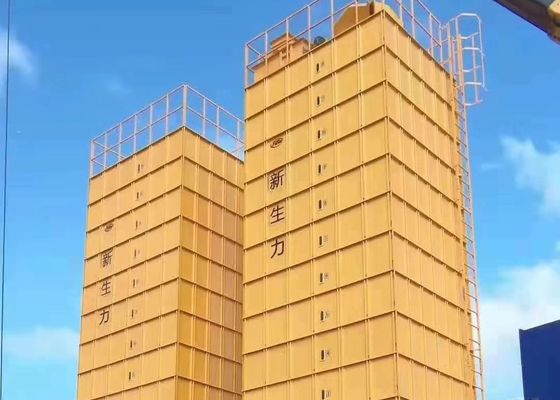

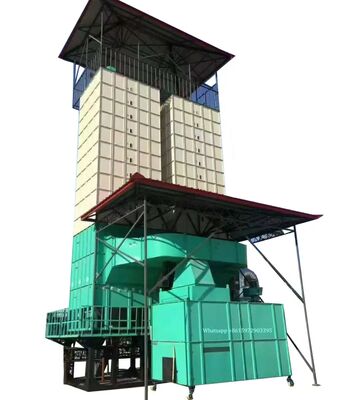

What's The Drying Plant Looks Like?
21.7kw 30 Tons Tower Maize Drying Machine Stainless Steel Corrosion Resistance 0

Applicants

21.7kw 30 Tons Tower Maize Drying Machine Stainless Steel Corrosion Resistance 1

21.7kw 30 Tons Tower Maize Drying Machine Stainless Steel Corrosion Resistance 2



21.7kw 30 Tons Tower Maize Drying Machine Stainless Steel Corrosion Resistance 3





What We Can Offer

1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season



Who Are We

21.7kw 30 Tons Tower Maize Drying Machine Stainless Steel Corrosion Resistance 4

PRESUN is a factory dedicated to Grain Processing Machinery,about us,few items you might need to know:



1)We are located at Hefei City,Anhui Prov,China

2)Have more than 11 years experience at grain drying industry

3)10,000 square meters workshop

4)5,000 sets dryer already installed worldwide

5)600-1,000 sets dryer sold every year

6)ISO 9001 certificated company

7)Listed company since 2017
