Indirect Heating 10000kg Rice Paddy Dryer Machine Low Temperature Circulating

10,000 kg rice dryer machine auto control mixed flow dryer slim rice dryer

Advantages

1. Multi-functional design which is applied to paddy, wheat, corn, soybean, rapeseed and other seeds. The dryer adopts indirect heating which is non-pollution and can remove the dust in the grain.
2. Adopt the circulation low drying technique which can improve the drying speed and quality.
3. New unloading design to avoid blocking, leakage, remaining of the grain and/or other seeds.
4. The grind proof design adopts a plate for scattering the grain in the top of the dryer. The blade of the plate is circular
which is processed with shape.
5. There is a short contact time between the grain and the plat, so it does not need too much driving power, which can radically solve the cracking and grinding problems.
6. The grain has increased crack percentage will be less than 1% and increased grinding rate will be less than 0.1%, which both superior to the international standard.

How Did Dryer Works

• Our dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface
• After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape
• When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again
• The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains
• Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target
• Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request

TECHNICAL PARAMETERS

                                                 Furnace Burner Options

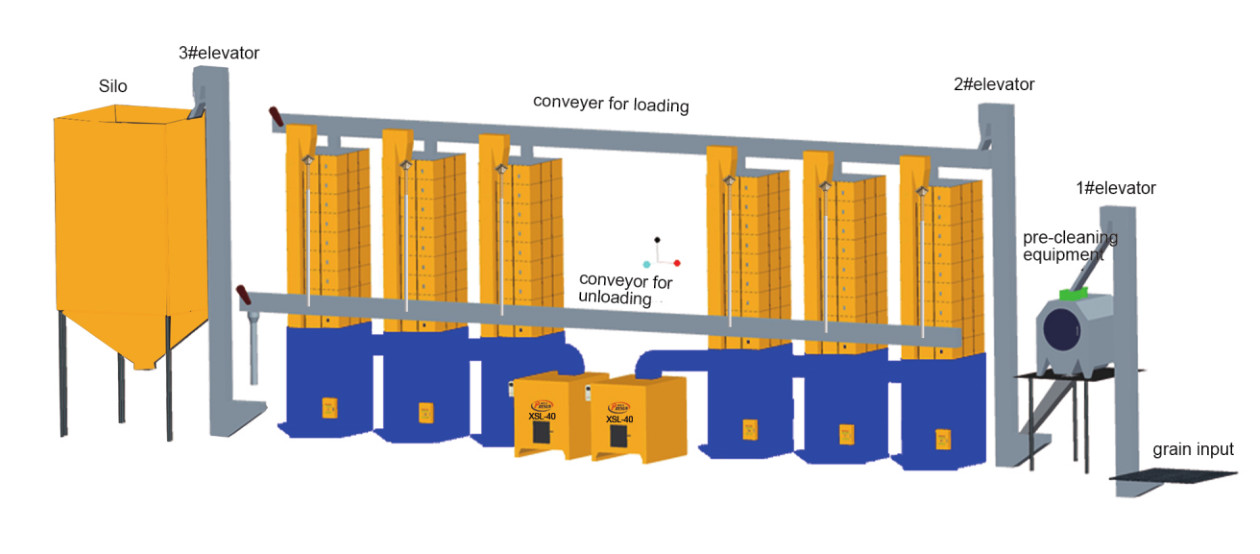

WORKING DIAGRAM

APPLICANTS:

WHAT WE CAN OFFER

1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares a
