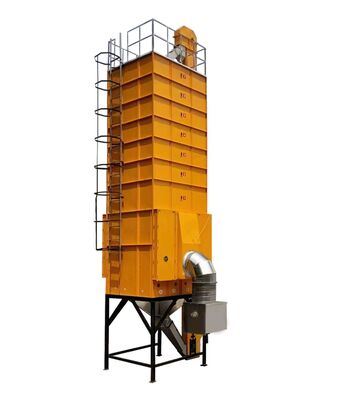

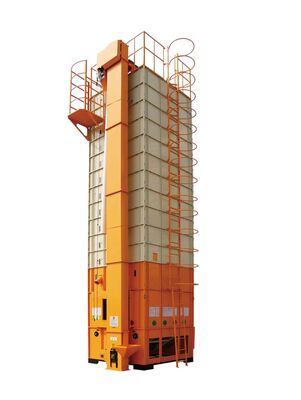

Even blend 9.95kw 10T Batch Type Dryer Machine For Rice Mill

10 tons batch type rice paddy dryer circulating low temperature rice dryer

Features:
Flexible and efficient heat source
Multiple heat supply is available. To minimize the environment burden, this machine is adopt the
technology of low temperature fully d rying, and the technology of maximum heat
Even blend, circular dryin
temp is around 40-60C) To minimize the broken rate, and to ensure the products in good condition
tempering for a long time. Thus, production costs will also be reduced at most
Easy to operate
High degree of automation. A full touch screen(HMI)with excellent clear display is adopted. and thereare automatic and manual mode to choose from, the multi-point safety interlock device is alseitroduced to this machine

How Did Dryer Works

• Our dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface
• After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape
• When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again
• The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains
• Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target
• Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request

TECHNICAL PARAMETERS

                                                 Furnace Burner Options

WORKING DIAGRAM

APPLICANTS:

WHAT WE CAN OFFER

1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares a
