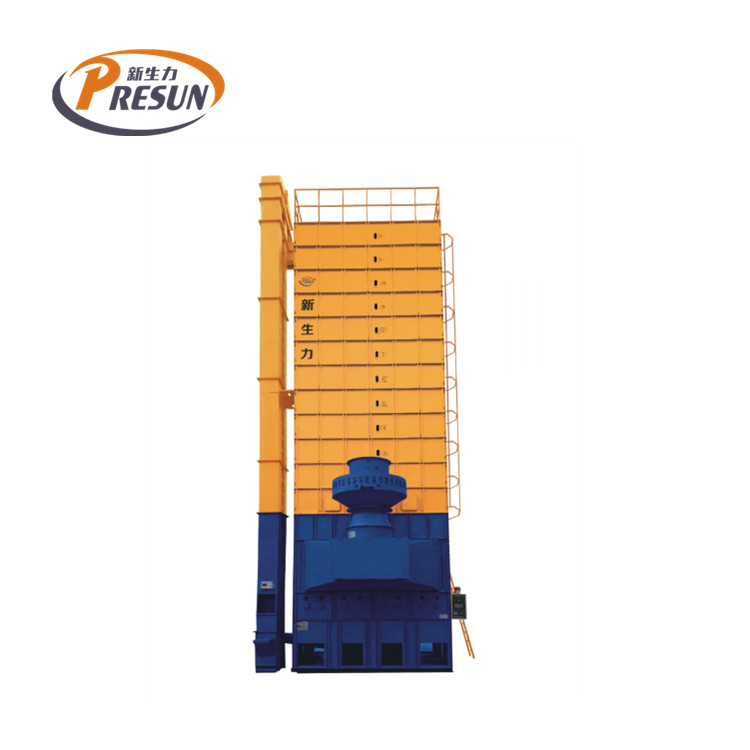

Horizontal Multislot 30000kg Batch Indrect Rice Dryer Machine

Place of Origin CHINA
Brand Name PRESUN
Certification ISO
Model Number 5HPX-30
Minimum Order Quantity 1set
Price USD 38000-45000 / set
Packaging Details standard export wooden cases
Delivery Time 5-8 working days if no customization parts
Payment Terms L/C, T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Batch Type Usage Grain Drying
Condition New Body Dimension 2900*2260*12700mm
Air Consumption 10000-14000 M3/h Power 21.7kw
Highlight

30000kg Batch rice dryer

,

Multislot rice dryer machine

,

Multislot paddy dryer machine

Leave a Message
Product Description

30,000 kg paddy rice seed dryer machine batch indrect drying machine

Advantages of our dryer:

1, Using horizontal multi-slot dryer section, grain crisscrossed loop cycle, hot exchange and evaporative way of drying to make sure the drying is evenly and fully;

2, Prevent drying crack broken rice we adopt constant drying speed control, precipitation rate and air temperature controlled by computer, without manual settings;

3, Prevent grain deterioration of the grain, machine running under proper temperature ;

4, Prevent excessive drying adopting automatic, accurate and safe water monitoring devices, it can be shut down automatic;

5, Body of tower is low and compact, easy to be installed;

6, High moisture rice and wheat quality also can be dried, widely used for rice, wheat, corn, soybeans and other crops;

7, Safe, reliable, easy to be cleaned;

8, A variety of fuels available, economic, environmentally friendly;

9, Easy to maintain, convenient to use;

10, Excellent quality raw materials for drying tower body, more durable.

How Did Dryer Machine Works?

1)Our dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface

2)After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape

3)When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again

4)The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains

5)Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target

6)Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request



Technical Parameters

Model 5HPX-30
Loading capacity 30Tons
Dimension 2900*2260*12700mm
Drying Type Low Temperature circulating Type
Power For Fan 5.5KW
Drying Rate 0.6~1.4% per hour
Heat Consumption <30,000 KCalorie
Weight 6,500KG
Standard Device Moisture Meter,Conveyor,Fan















                                                          Fuel Burner Options

Fuel Type Available
Gas CNG/LPG
Diesel Light Oil
Biomass Husk/Corn cob/Plam sheel and others

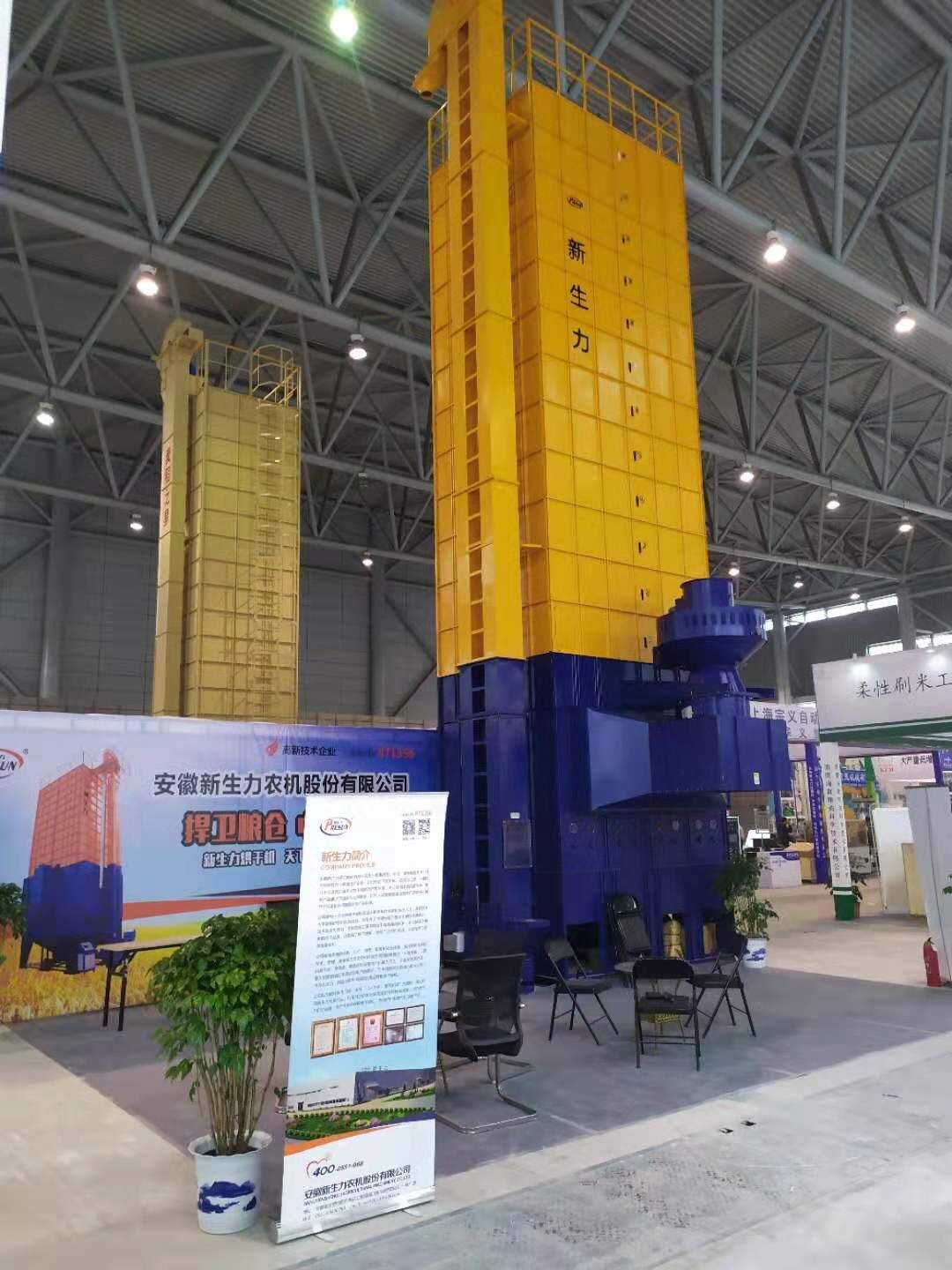

What's The Drying Plant Looks Like?
Horizontal Multislot 30000kg Batch Indrect Rice Dryer Machine 0

Horizontal Multislot 30000kg Batch Indrect Rice Dryer Machine 1

Details

Horizontal Multislot 30000kg Batch Indrect Rice Dryer Machine 2Horizontal Multislot 30000kg Batch Indrect Rice Dryer Machine 3

Horizontal Multislot 30000kg Batch Indrect Rice Dryer Machine 4



What We Can Offer

1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season





Company Profile

Horizontal Multislot 30000kg Batch Indrect Rice Dryer Machine 5



Who Are We

PRESUN is a factory dedicated to Grain Processing Machinery,about us,few items you might need to know:



1)We are located at Hefei City,Anhui Prov,China

2)Have more than 11 years experience at grain drying industry

3)10,000 square meters workshop

4)5,000 sets dryer already installed worldwide

5)600-1,000 sets dryer sold every year

6)ISO 9001 certificated company

7)Listed company since 2017
