High Drying Rate Row Paddy Dryer Machine 5HPX-15 10-15 Tons Per Batch

Place of Origin CHINA
Brand Name PRESUN
Certification ISO
Model Number 5HPX-15
Minimum Order Quantity 1 set
Price USD 16500-19500 / set
Packaging Details standard export wooden cases
Delivery Time 7 working days if no special request
Payment Terms L/C, T/T, Western Union
Supply Ability 100 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Batch Type Usage Grain Drying
Brand Presun Drying Rate 0.5~1.2%
Power 9.95kw Dryer Dimension 1850*4170*10200mm
Whole Dimesion 2500*4320*10200mm Waranty 1 Year
Highlight

rice paddy dryer

,

paddy rice dryer

,

High Drying Rate Row Paddy Dryer

Leave a Message
Product Description

High Drying Rate 10-15 Tons Per Batch Row Paddy Dryer Machine

IS IT ESSENTIAL TO INSTALL PRESUN GRAIN DRYER MACHINE FOR YOUR MILL?

Definitely Yes,Cause...

1)Full time processing ability,get rid of bad weathers' interruption,like raining,storm,snowing and etc

2)Massive Drying Capacity,one batch could reach 35 tons capacity,if connected with 6 sets,200 tons per day is available

3)Low-cost running consumption,Biomass material/coal/gas/diesel are all available

4)Flexible installation method,one furnace could connect 3 to 4 dryers,to save the land space

5)High processing efficiency,mo blind drying section,all the material would keep to the same mositure rate,make them the same quality

6)Slow and careful auger,tiny broken and waste material during the circulation

7)Best return on Investment ratio,running one to two month,could get back the investment on the machine



WORKING PRINCIPLE OF PADDY DRYER

It adopts rotary heating device, it can output enough hot air in a short time and dry the grains which is passing through.

It also adopts digitization control and instrumentation to control drying box’s temperature to avoid appearing discoloring and metamorphic phenomenon.

Drying cabinet is made of metal aluminum plate and silica gel cotton insulation layer to reduce energy consumption effectively.

Cyclotron system can reach the purpose of air circulation, humidification and heating in the drying box

High Drying Rate Row Paddy Dryer Machine 5HPX-15 10-15 Tons Per Batch 0

TECHNICAL PARAMETERS

Model 5HPX-15
Loading capacity 15 Tons
Dimension 1850*4170*10200mm
Drying Type Low Temperature circulating Type
Power For Fan 2.2KW
Drying Rate 0.5~1.2%
Heat Consumption <20,000 KCalorie
Weight 3000KG
Standard Device Moisture Meter,Conveyor,Fan























                                                    Furnace Burner Options

Furnace Type Yes/No
Diesel Yes
Gas Yes
Coal Yes
Biomass Material Yes(Husk/Wood/Straw/Etc)

High Drying Rate Row Paddy Dryer Machine 5HPX-15 10-15 Tons Per Batch 1

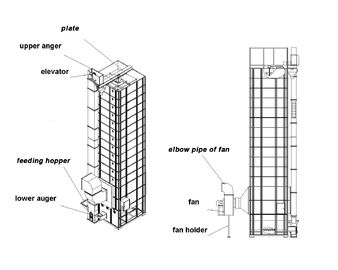

WORKING DIAGRAM

High Drying Rate Row Paddy Dryer Machine 5HPX-15 10-15 Tons Per Batch 2

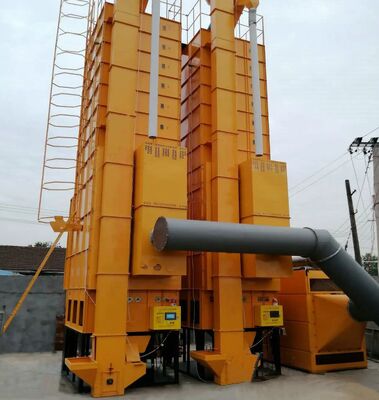

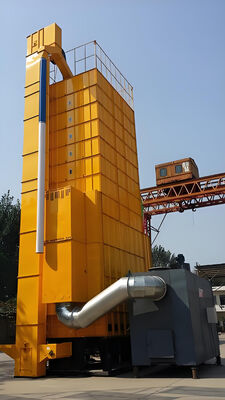

APPLICANTS:

High Drying Rate Row Paddy Dryer Machine 5HPX-15 10-15 Tons Per Batch 3

High Drying Rate Row Paddy Dryer Machine 5HPX-15 10-15 Tons Per Batch 4

High Drying Rate Row Paddy Dryer Machine 5HPX-15 10-15 Tons Per Batch 5

COMPANY PROFILE

High Drying Rate Row Paddy Dryer Machine 5HPX-15 10-15 Tons Per Batch 6

Anhui Xingshengli Agricultural Machinery Co.,Ltd is a professional manufacturer with development,

manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,

and about 1200 square meters as the office area in Hefei, Anhui province.


We have professional technical engineers and experts who have been working in grain drying field for

more than 10 years. With the development of our company, we successfully transferred into a listed

company in NEEQ in the April of 2017, our stock code:871356.



The company take full advantage of advanced technique, management, financing and service concept,

unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the

same time, we always research and develop products to meet different market and customer’s demand.

Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary

equipments are available,reaching a quicker grain input & output speed.

Our company always insist on”people foremost, service to farmers” as our management concept; “energy

conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.

We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.



OUR SERVICE

High Drying Rate Row Paddy Dryer Machine 5HPX-15 10-15 Tons Per Batch 7

Pre-sale services:

1. Provide professional technical support

2. Catalog and instruction manual are available

3. Substantial and necessary equipments are also supported

After-sale service:

1. One year warranty and life long maintenance

2. 24 hours telephone service online within technique guadiance

3. A large stock of components and parts

4. Engineer are also standing by to give present instruction
