Rice Mill Batch 9.95kw 12 Ton Mechanical Grain Dryer

Place of Origin CHINA
Brand Name PRESUN
Certification ISO
Model Number 5HPX-15
Minimum Order Quantity 1set
Packaging Details standard export wooden cases
Delivery Time 7 working days if no special request
Payment Terms L/C, T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Batch Type Usage Grain Drying
Condition New Drying Rate 0.5~1.2%
Dryer Dimension 1850*4170*10200mm Power 9.95kw
Whole Dimesion 2500*4320*10200mm
Highlight

12 Ton Mechanical Grain Dryer

,

Batch Mechanical Grain Dryer

,

9.95kw Paddy Dryer Machine

Leave a Message
Product Description

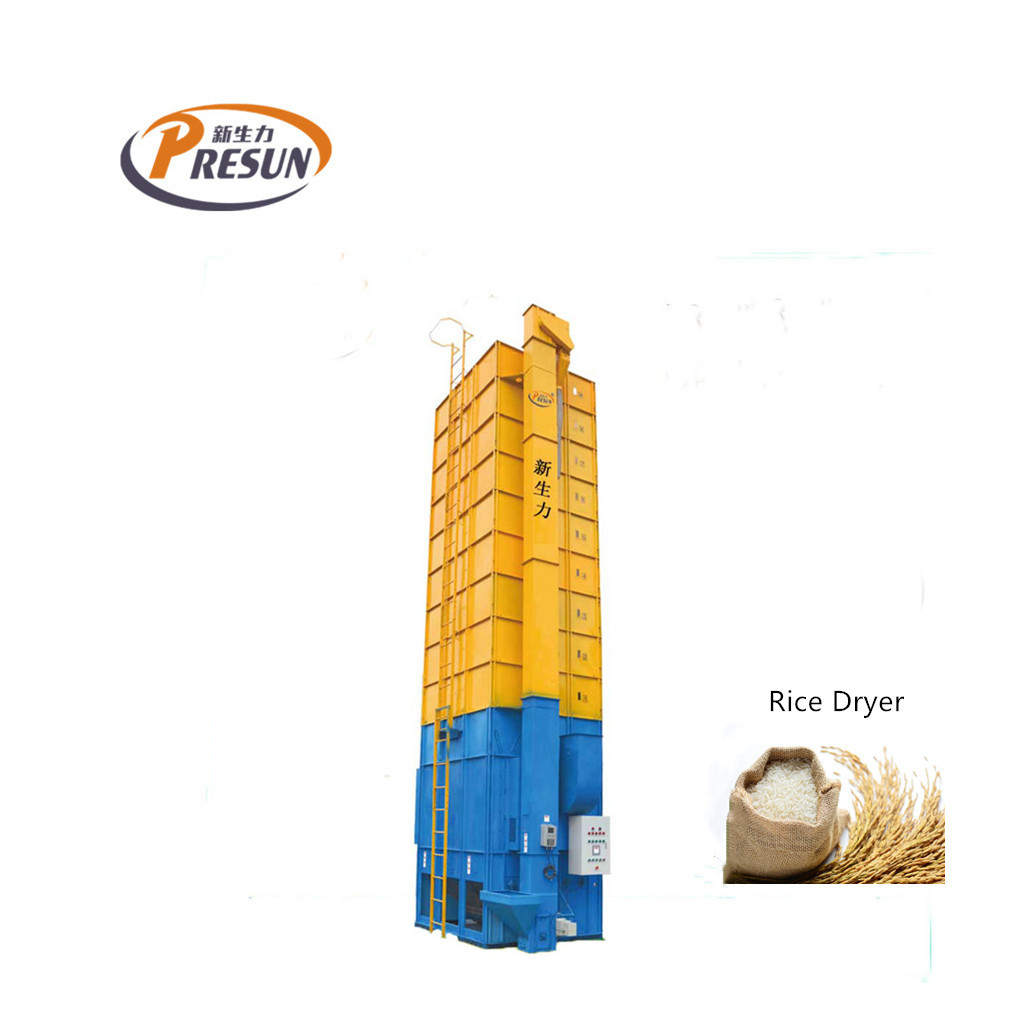

Rice mill dryer with online moisture meter mini paddy dryer 12 tons



How Did Presun Dryer Works

  • Our dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface
  • After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape
  • When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again
  • The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains
  • Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target
  • Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request

Rice Mill Batch 9.95kw 12 Ton Mechanical Grain Dryer 0

TECHNICAL PARAMETERS

Model 5HPX-15
Loading capacity 15Tons
Dimension 2560*1850*10700mm
Drying Type Low Temperature circulating Type
Power For Fan 5.5KW
Drying Rate 0.6~1.2%
Heat Consumption <20,000 KCalorie
Weight 3,000KG
Standard Device Moisture Meter,Conveyor,Fan























Furnace Burner Options

Furnace Type Yes/No
Diesel Yes
Gas Yes
Coal Yes
Biomass Material Yes(Husk/Wood/Straw/Etc)

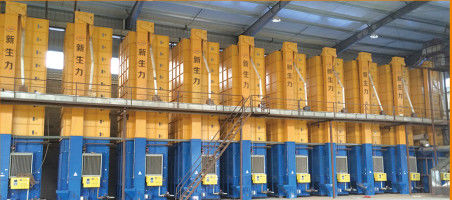

APPLICANTS:

Rice Mill Batch 9.95kw 12 Ton Mechanical Grain Dryer 1Rice Mill Batch 9.95kw 12 Ton Mechanical Grain Dryer 2

Rice Mill Batch 9.95kw 12 Ton Mechanical Grain Dryer 3



WHO WE ARE

Rice Mill Batch 9.95kw 12 Ton Mechanical Grain Dryer 4

PRESUN is a factory dedicated to Grain Processing Machinery,about us,few items you might need to know:



1)We are located at Hefei City,Anhui Prov,China

2)Have more than 11 years experience at grain drying industry

3)10,000 square meters workshop

4)5,000 sets dryer already installed worldwide

5)600-1,000 sets dryer sold every year

6)ISO 9001 certificated company

7)Listed company since 2017
