products details

Home Products

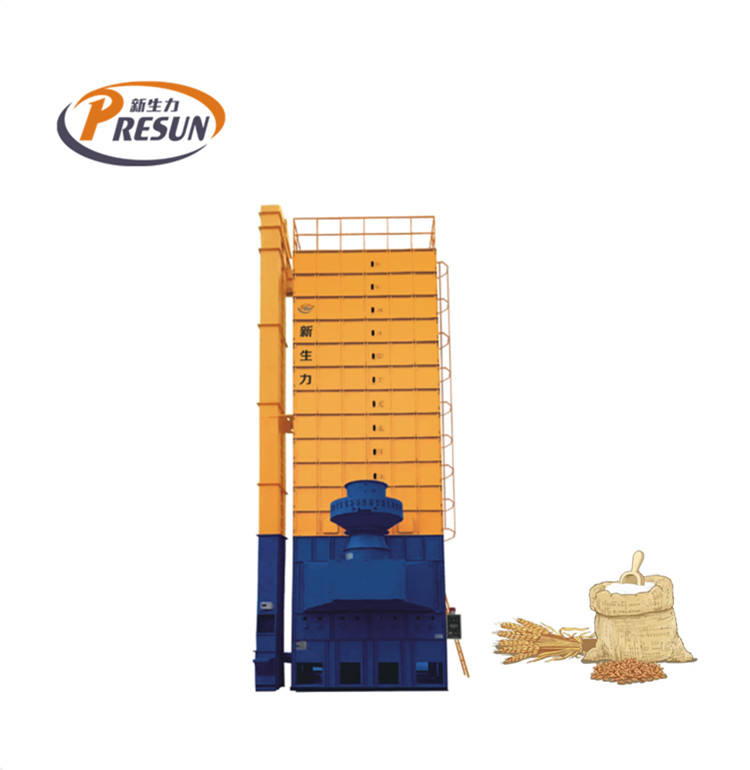

30 Ton 14000m3/H Stainless Steel Wheat Dryer Machine

Brand Name:	PAM
Model Number:	5HPX-30
MOQ:	1set
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Type:

Batch Type

Usage:

Grain Drying

Drying Zone:

Stainless Steel

Body Dimension:

2900*2260*12700mm

Air Consumption:

10000-14000m3/h

Power:

21.7kw

Guaranty:

1 Yeat

Gross Weight:

6500 Kg

Packaging Details:

standard export wooden cases

Highlight:

Stainless Steel Wheat Dryer Machine

14000m3/h Wheat Dryer Machine

30 Ton Wheat Dryer Machine

Product Description

Low temperature circulating batch type wheat dryer machine wheat drying equipment 30 tons

Technical Parameters

Model	5HPX-30
Loading capacity	30Tons
Dimension	2900226012700mm
Drying Type	Low Temperature circulating Type
Power For Fan	5.5KW
Drying Rate	0.6~1.4%
Heat Consumption	<30,000 KCalorie
Weight	6,500KG
Standard Device	Moisture Meter,Conveyor,Fan

How Did This Dryer Work?

1)Our dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface

2)After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape

3)When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again

4)The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains

5)Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target

6)Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request

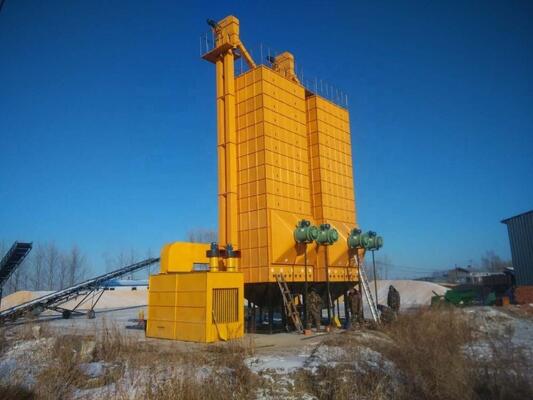

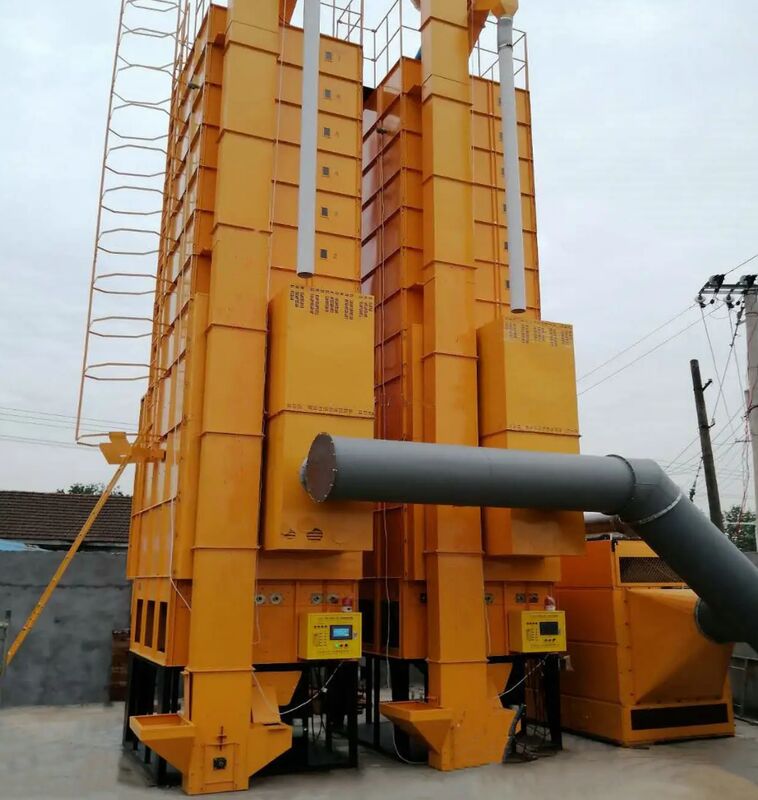

What's The Drying Plant Looks Like?

Applicants

30 Ton 14000m3/H Stainless Steel Wheat Dryer Machine 1
