Biomass Furnace Hot Air Maize Drying Machine 35 Tons Capacity With ISO Certification

Place of Origin CHINA
Brand Name PRESUN
Certification ISO
Model Number 5HPX-35
Minimum Order Quantity 1set
Price USD 38000-46000 / set
Packaging Details standard export wooden cases
Delivery Time 7-15 working days if no customization parts
Payment Terms L/C, T/T, Western Union
Supply Ability 100 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Batch Type Usage Grain Drying
Condition New Drying Rate 0.5~1.2%
Power 19.4kw Dryer Dimension 3500*2500*12500mm
Whole Dimesion 5000*5700*12400mm Warranty 1 Year
Packing Wooden Case Certification ISO
Highlight

maize drying equipment

,

maize grain dryer

,

Maize Drying Machine ISO

Leave a Message
Product Description

Biomass Furnace Hot Air 35 Tons Capacity Maize Drying Machine With ISO Certification

IS IT ESSENTIAL TO INSTALL PRESUN GRAIN DRYER MACHINE FOR YOUR MILL?

Definitely Yes,Cause...

1)Full time processing ability,get rid of bad weathers' interruption,like raining,storm,snowing and etc

2)Massive Drying Capacity,one batch could reach 35 tons capacity,if connected with 6 sets,200 tons per day is available

3)Low-cost running consumption,Biomass material/coal/gas/diesel are all available

4)Flexible installation method,one furnace could connect 3 to 4 dryers,to save the land space

5)High processing efficiency,mo blind drying section,all the material would keep to the same mositure rate,make them the same quality

6)Slow and careful auger,tiny broken and waste material during the circulation

7)Best return on Investment ratio,running one to two month,could get back the investment on the machine





CORE FEATURE



Best drying quality

Low temperature batch type drying,quality can be assured.Also there is less broken & lower grain crack

rate,compared with high temperature continuously drying.

Higher durability

All parts which will work in a high strength circumstance are make by better hardness material.

Easy operation and repair

Automatic control for drying & manual control for testing.touch screen with bottons to confirm your using.

All parts can be removed, so that the repair is easy.

Lower drying cost

Fuel consumption is according to temperature control by automatic, more fuel saved.Also the burner

takes full advantage of the fuel,resulted in a better fuel saving.

Perfect service

To provide a in-time service ,we choose dealers prudently, a grain dryer team is needed before we

cooperate.For foreign market, we will provide 24H online service,send us email & call us directly,

tech support is always for free.





WORKING PRINCIPLE OF PADDY DRYER



It adopts rotary heating device, it can output enough hot air in a short time and dry the grains which is passing through.

It also adopts digitization control and instrumentation to control drying box’s temperature to avoid appearing discoloring and metamorphic phenomenon.

Drying cabinet is made of metal aluminum plate and silica gel cotton insulation layer to reduce energy consumption effectively.

Cyclotron system can reach the purpose of air circulation, humidification and heating in the drying box

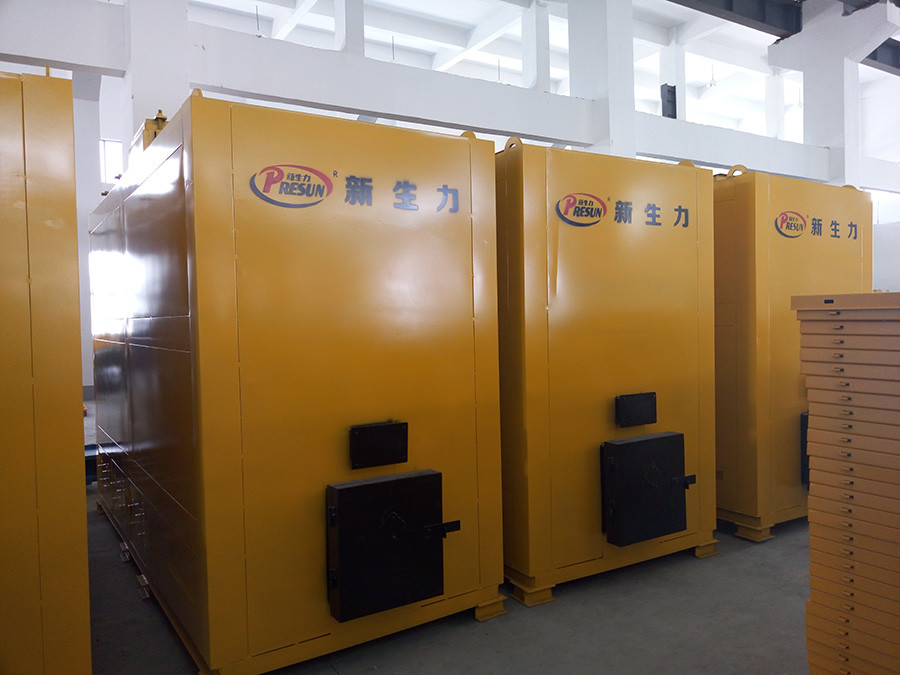

Biomass Furnace Hot Air Maize Drying Machine 35 Tons Capacity With ISO Certification 0

TECHNICAL PARAMETERS

Model 5HPX-35
Loading capacity 35 Tons
Dimension 5000*5700*12500mm
Drying Type Low Temperature circulating Type
Power For Fan 2.2KW
Drying Rate 0.5~1.2%
Heat Consumption <60,000 KCalorie
Weight 8000KG
Standard Device Moisture Meter,Conveyor,Fan





















                                                 Furnace Burner Options

Furnace Type Yes/No
Diesel Yes
Gas Yes
Coal Yes
Biomass Material Yes(Husk/Wood/Straw/Etc)

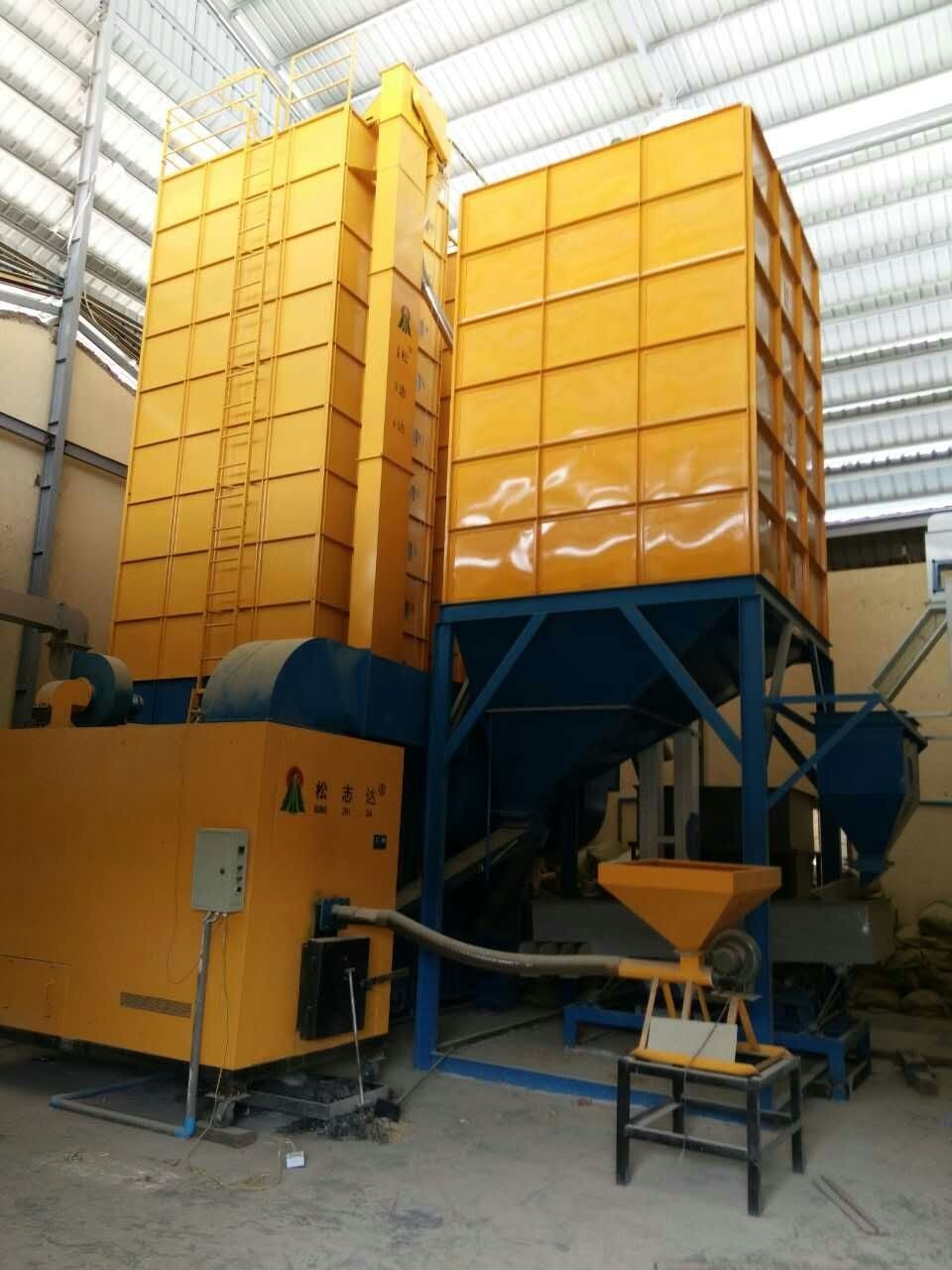

Biomass Furnace Hot Air Maize Drying Machine 35 Tons Capacity With ISO Certification 1

WORKING DIAGRAM

Biomass Furnace Hot Air Maize Drying Machine 35 Tons Capacity With ISO Certification 2



APPLICANTIONS:

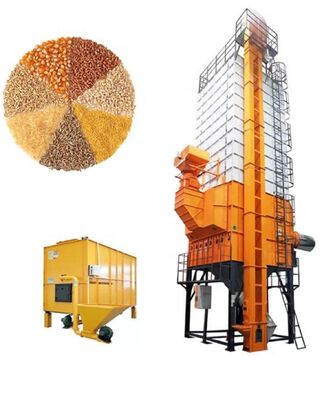

Biomass Furnace Hot Air Maize Drying Machine 35 Tons Capacity With ISO Certification 3

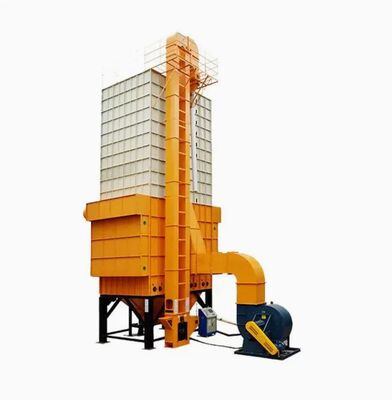

Biomass Furnace Hot Air Maize Drying Machine 35 Tons Capacity With ISO Certification 4

Biomass Furnace Hot Air Maize Drying Machine 35 Tons Capacity With ISO Certification 5





OUR SERVICE

Biomass Furnace Hot Air Maize Drying Machine 35 Tons Capacity With ISO Certification 6

Pre-sale services:

1. provide professional technical support;

2. product catalog and instructions are available

3. personal call or visit is warmly welcome

Sale of services:

1. We promise honesty and enthusiasm, it’s our pleasure to serve you as you purchasing consultant.

2. We guarantee punctuality, quality and quantities strictly implement the terms of contract

3. We send engineers to install in your factory and training your works until they totally get all skills

After-sale service:

1. One year warranty and life long maintenance

2. 24 hours telephone service online within technique guidance

3. A large stock of components and parts



COMPANY PROFILE

Biomass Furnace Hot Air Maize Drying Machine 35 Tons Capacity With ISO Certification 7

Anhui Xingshengli Agricultural Machinery Co.,Ltd is a professional manufacturer with development,

manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,

and about 1200 square meters as the office area in Hefei, Anhui province.


We have professional technical engineers and experts who have been working in grain drying field for

more than 10 years. With the development of our company, we successfully transferred into a listed

company in NEEQ in the April of 2017, our stock code:871356.



The company take full advantage of advanced technique, management, financing and service concept,

unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the

same time, we always research and develop products to meet different market and customer’s demand.

Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary

equipments are available,reaching a quicker grain input & output speed.

Our company always insist on”people foremost, service to farmers” as our management concept; “energy

conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.

We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
