Small Mobile Grain Dryer Cheap Maize Dryer Portable Corn Dryer
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Fuel | Light Oil |
|---|---|---|---|
| Color | Red | Ignition Mode | Automatic |
| Power | 19 Kw | Dimension | 6300*2100*3800mm |
| High Light | fuel oil burner,diesel fired burner |
||
Product Description
Product Description

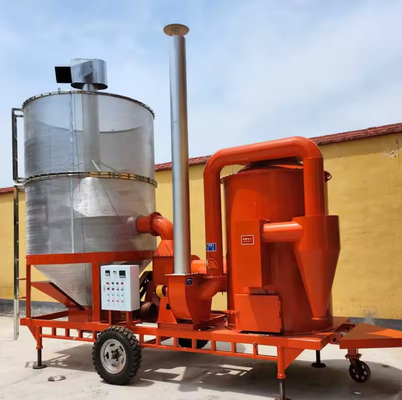

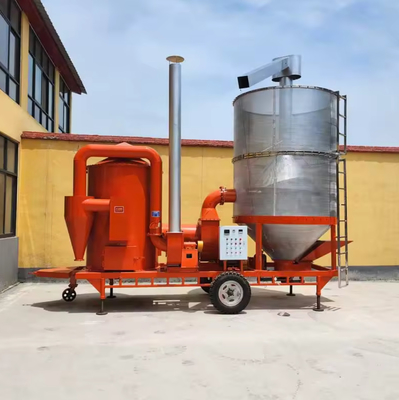

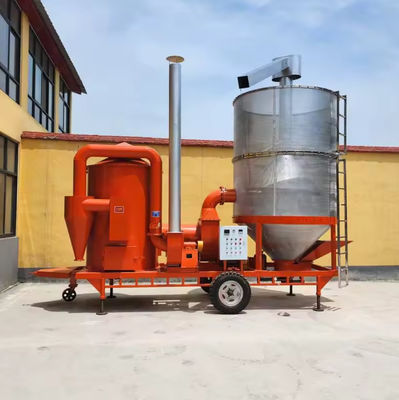

Presun Small maize dryer tower, corn dryer tower, grain drying machine
A. simple structure, easy to use.
B.high production efficiency, fast drying speed, the grain circulation speed, high blast temperatu re can be used, but not make the grain temperature too high, the food was in a state of continuous mixing and flow all the time, so the uniform drying, moisture evaporates faster.
C.the tempering drying simultaneously, after high temperature drying of grain in vertical spiral send first vertebral body upper part, for a short period of time the tempering, easy to spread within the grain moisture, conforms to the law of grain drying, is helpful to ensure food quality.
D.the machine use shorter drying period and recovery period of circulation flow, instead of a tower slow flow, the fuselage height decreases greatly.
E.highspeed discharge, easy to feed.Although the dryer intermittent operation, the average efficiency is high, unloading grain only about 15 minutes, drying is not affected by raw grain moisture, moisture is high cycle time, time, moisture low cycle less time.Do not need to cost due to install dryer construction costs.
Technology parameter
| The temperature that the grain allowed | ||||
| Grain | Grain layer thinkness(cm) | Grain temperature permissible heated | ||
| Grain as feed (℃) | Grain as feed (℃) | Grain as feed (℃) | ||
| Corn | 50.8 | 80 | 40 | 60 |
| Wheat | 50.8 | 80 | 40 | 60 |
| Barley | 50.8 | 80 | 40 | 40 |
| Oats | 91.4 | 80 | 40 | 60 |
| Rice | 45.7 | 40 | 40 | |
| Bean | 50.8 | 30 | 40 | |
| Sorghum | 50.8 | 80 | 40 | 60 |
| Rapeseed | 50.8 | 40 | 70 | |
| Total weight(t) | 7.5 |
| Arear size(m) L*W*H | 5*3*10 |
| Capacity(t/h) | 5 |
| Consumption of calorie(Kcal/h) | 300000 |
| Total power(kW) | 19.4 |
| Actual power | 16 |
| Container | One 40HQ |
Operating principe of mobile grain dryer
Tower dryer is also called the grain dryers, grain drying machine is an ideal equipment for drying grain and oil, processed products from the top input, through the feeding device, to ensure that the equipment always in full load condition during operation. After turning inward bottomless v-shaped flap and processing with staggered joint action of multiple rows of "V" baffle, makes possible the mix of processed products, but also as dry air in and out of the channel, the fan will be used gas into the collector, purification, most of the dry air can be recycled, so save the fuel consumption.
Characteristics
1. Outdoor dryer can reduce building cost
The outdoor dryer needn’t build a drying room, small area occupation, shorten the installation period, reduce the cost of the whole equipment; they are very helpful to achieve profitable operations.
2. High moisture paddy or wheat can be dried easily
The internal distribution of “v” shape “hill-shaped multi-tube structure” can circulate mixing grain perfectly, prevent drying inhomogeneous, crackle, over drying etc, high moisture paddy or wheat can be dried easily and the quality can be guaranteed after drying by low temperatures, high winds, comprehensive ventilation structure.
3. Installation working hours can be reduced by semi-products delivery
Many parts have been assembled before delivery, it can reduce installation working hours, reduce the time limit from project and costs on site. In addition, wires and pipe work, wiring material, and the air pipe etc are also carried out simultaneously, when the completion installation of the mechanical parts, they can also be finished together at the same time.
4. Advanced technology in drying industry
The dryer is designed with mixed flow drying principle, resulting in high heating efficiency, low energy consumption and large capacity. By mixed flow and low temperature drying, moisture is reduced slowly and evenly, thus damaging by heating is minimized. The grain is kept in good quality after drying with least cracking.
5. Patented discharge technology
The discharging is more stable, uniform, without cleaning.
6. Distinctive dust removing equipment
HJ Brand tower type grain dryer utilize advanced dust removing technology, which improves working environment
Company profile
Presun Agro Machinery Co.,ltd is a high-tech enterprise dedicated to grain dryer machine. Its product line mainly consists of grain dryers, biomass furnaces and auxiliary equipment.
Since its establishment in 2009, its products have been exported to many countries, such as Algeria, Bangladesh, India, Indonesia, Mynarma, Philippines, Laos, Pakistan, Nigeria, Uganda etc. It has the production capacity to manufacture 500 sets grain dryer machine per year, and can also provide a series of comprehensive solutions such as scheme design, drawing planning, production assembly, and after-sales guidance
"Customer oriented, serving farmers" have always been the company's purpose. Reducing farmers' drying costs and providing the lowest-cost and best-quality grain are our continuous pursuit.
FAQ
Q1. What is the drying cost? Is the machine energy-saving? what is the heating fuel?
A: The fuel can be coal, fire wood, natural gas, diesel oil, rice husk or ther biomass materials.
Q 2. What kind of grain dryers do you have?
A: We have more than 20 models of grain dryer. We have batch drying unit,continuous drying unit and moblie drying unit,ect.
