Wheat Dryer Machine
Created with Pixso.

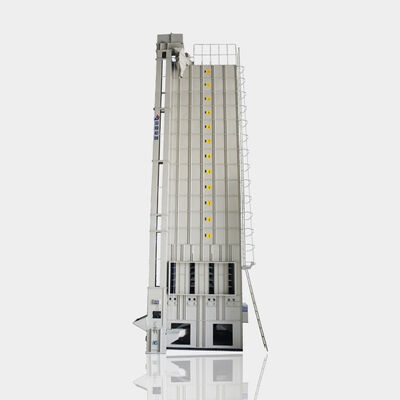

LSU Type Mix Flow Grain Dryer Manufacturer Suitable To Wheat/Maize/Soybeans

LSU Type Mix Flow Grain Dryer Manufacturer Suitable To Wheat/Maize/Soybeans

Brand Name: PAM
Model Number: 5HPX-35
MOQ: 1set
Price:
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Type:
Batch Type
Usage:
Grain Drying
Condition:
New
Body Dimension:
3500*2500*12400mm
Overall Dimension:
5000*5700*12400mm
Power:
19.4kw
Packaging Details:
standard export wooden cases
Highlight:

agricultural dryer machine

,

maize drying equipment

Product Description

LSU Type Mix Flow Grain Dryer Manufacturer Suitable To Wheat/Maize/Soybeans

CORE FEATURE

Best drying quality
Low temperature batch type drying,quality can be assured.Also there is less broken & lower grain crack
rate,compared with high temperature continuously drying.

Higher durability
All parts which will work in a high strength circumstance are make by better hardness material.

Easy operation and repair
Automatic control for drying & manual control for testing.touch screen with bottons to confirm your using.
All parts can be removed, so that the repair is easy.

Lower drying cost
Fuel consumption is according to temperature control by automatic, more fuel saved.Also the burner
takes full advantage of the fuel,resulted in a better fuel saving.

Perfect service
To provide a in-time service ,we choose dealers prudently, a grain dryer team is needed before we
cooperate.For foreign market, we will provide 24H online service,send us email & call us directly,
tech support is always for free.



TECHNICAL PARAMETERS

Model
Item

5HPX-155HPX-205HPX-305HPX-35
Loading capacity(kg)Paddy3,000~15,0003,000~20,0004,000~30,0005,000~35,000
Corn3,800~18,5003,800~24,6005,000~36,4006,000~42,000
Dimension L*W*H (mm)4321*2583*100004600*3263*105004374*3570*127005712*5000*12400
Net Weight3,0004,2005,5008,000
Heat SourceBiomass Furnace/Gas Burner/Diesel Burner
Power Consumption (kw)9.9510.613.519.7
Input Voltage3 Phase 220V/380V,50Hz
Husk FurnaceTypeIndirect
Ignition Manual
FunctionLoading50~60(approx)50~60(approx)60~70(approx)60~70(approx)
Discharge50~60(approx)50~60(approx)60~70(approx)60~70(approx)
Drying Rate0.5-1.2 %/h0.5-1.2 %/h0.6-1.5 %/h0.5-1.2 %/h
Standard DevicesOnline moisture meter, Conveyor ,Discharge system, Buffer system, Elevator ,Suction fan, Temperature sensor
Safety DevicesOverload device, Temperature control device, Control fuse, Leakage protection device, Air pressure switch






















LSU Type Mix Flow Grain Dryer Manufacturer Suitable To Wheat/Maize/Soybeans 0

OUR SERVICE

Pre-sale services:
1. provide professional technical support;
2. send the product catalog and instruction manual;
3. personal call or visit is warmly welcome
sale of services:
1. we promise honesty and enthusiasm, it’s our pleasure to serve you as you purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract
3. We send engineers to install in your factory and train your works until they totally get all skills
After-sale service:
1. One year warranty and life long maintenance
2. 24 hours telephone service online
3. A large stock of components and parts, easily-worn parts.
