Circulating 9.95kw 50 Ton Batch Type Paddy Rice Dryer

Place of Origin CHINA
Brand Name PRESUN
Certification ISO
Model Number 5HPX-15
Minimum Order Quantity 1 set
Packaging Details standard export wooden cases
Delivery Time 7 working days if no special request
Payment Terms L/C, T/T, Western Union
Supply Ability 100 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Batch Type Usage Grain Drying
Brand Presun Drying Rate 0.5~1.2%
Power 9.95kw Dryer Dimension 1850*4170*10200mm
Whole Dimesion 2500*4320*10200mm Waranty 1 Year
Highlight

Batch Type Paddy Rice Dryer

,

50 Ton Paddy Rice Dryer

,

9.95kw Paddy Dryer Machine

Leave a Message
Product Description

Batch type paddy rice dryer manufacturer 50 tons paddy drying machinery

IS IT ESSENTIAL TO INSTALL PRESUN GRAIN DRYER MACHINE FOR YOUR MILL?

Definitely Yes,Cause...
1)Full time processing ability,get rid of bad weathers' interruption,like raining,storm,snowing and etc
2)Massive Drying Capacity,one batch could reach 15 tons capacity,if connected with 3 sets,50 tons per day is available
3)Low-cost running consumption,Biomass material/coal/gas/diesel are all available
4)Flexible installation method,one furnace could connect 3 to 4 dryers,to save the land space
5)High processing efficiency,mo blind drying section,all the material would keep to the same mositure rate,make them the same quality
6)Slow and careful auger,tiny broken and waste material during the circulation
7)Best return on Investment ratio,running one to two month,could get back the investment on the machine


WORKING PRINCIPLE OF PADDY DRYER

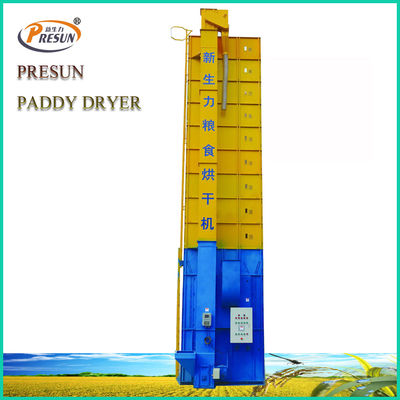

Circulating 9.95kw 50 Ton Batch Type Paddy Rice Dryer 0

TECHNICAL PARAMETERS

Model5HPX-15
Loading capacity15 Tons
Dimension1850*4170*10200mm
Drying TypeLow Temperature circulating Type
Power For Fan2.2KW
Drying Rate0.5~1.2%
Heat Consumption<20,000 KCalorie
Weight3000KG
Standard DeviceMoisture Meter,Conveyor,Fan












                                                          Fuel Burner Options

Furnace TypeYes/No
DieselYes
GasYes
CoalYes
Biomass MaterialYes(Husk/Wood/Straw/Etc)

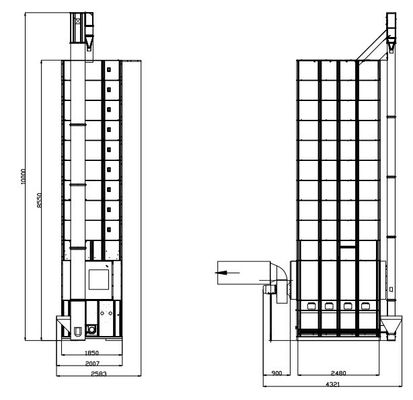

WORKING DIAGRAM
Circulating 9.95kw 50 Ton Batch Type Paddy Rice Dryer 1

What We Can Offer

1)Whole turnkey project solution
included Pre-cleaning machine,elevator,input&outlet pipe,furnace and dryer
2)Plant designition service
supply you all the possibly area required,the instllation diagram for consideration
3)Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning the machine
4)Full time online service
24 hours online technique service,ensure to tackle the problem immediately
5)Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season

APPLICANTS:
Circulating 9.95kw 50 Ton Batch Type Paddy Rice Dryer 2
Circulating 9.95kw 50 Ton Batch Type Paddy Rice Dryer 3
Circulating 9.95kw 50 Ton Batch Type Paddy Rice Dryer 4

OUR SERVICE
Circulating 9.95kw 50 Ton Batch Type Paddy Rice Dryer 5
1. One year warranty and life long maintenance
2. 24 hours telephone service online within technique guadiance
3. A large stock of components and parts
4. Engineer are also standing by to give present instruction

COMPANY PROFILE
Circulating 9.95kw 50 Ton Batch Type Paddy Rice Dryer 6
Anhui Xingshengli Agricultural Machinery Co.,Ltd is a professional manufacturer with development,
manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,
and about 1200 square meters as the office area in Hefei, Anhui province.
We have professional technical engineers and experts who have been working in grain drying field for
more than 10 years. With the development of our company, we successfully transferred into a listed
company in NEEQ in the April of 2017, our stock code:871356.

The company take full advantage of advanced technique, management, financing and service concept,
unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the
same time, we always research and develop products to meet different market and customer’s demand.
Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary
equipments are available,reaching a quicker grain input & output speed.
Our company always insist on”people foremost, service to farmers” as our management concept; “energy

conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.
We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
