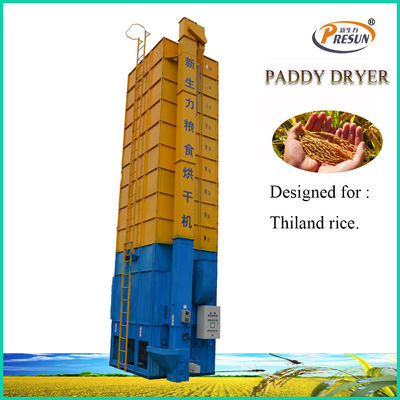

Grain Circulating Batch Type 12 Ton Rice Paddy Dryer

Place of Origin CHINA
Brand Name PRESUN
Certification ISO
Model Number 5HPX-15
Minimum Order Quantity 1 set
Packaging Details standard export wooden cases
Delivery Time 7 working days if no special requests
Payment Terms L/C, T/T, Western Union
Supply Ability 100 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Batch Type Usage Grain Drying
Brand Presun Drying Rate 0.5~1.2%
Dryer Dimension 1850*4170*10200mm Whole Dimesion 2500*4320*10200mm
Waranty 1 Year Certification ISO
High Light

12 Ton Rice Paddy Dryer

,

Batch Type Rice Paddy Dryer

,

Circulating Paddy Dryer Machine

Leave a Message
Product Description

12 tons rice dryer supplier china paddy rice dryer seller suncue grain dryer

IS IT ESSENTIAL TO INSTALL PRESUN GRAIN DRYER MACHINE FOR YOUR MILL?

Definitely Yes,Cause...

1)Full time processing ability,get rid of bad weathers' interruption,like raining,storm,snowing and etc

2)Massive Drying Capacity,one batch could reach 15 tons capacity,if connected with 6 sets,100 tons per day is available

3)Low-cost running consumption,Biomass material/coal/gas/diesel are all available

4)Flexible installation method,one furnace could connect 3 to 4 dryers,to save the land space

5)High processing efficiency,mo blind drying section,all the material would keep to the same mositure rate,make them the same quality

6)Slow and careful auger,tiny broken and waste material during the circulation

7)Best return on Investment ratio,running one to two month,could get back the investment on the machine



WORKING PRINCIPLE OF PADDY DRYER

1)Our dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface

2)After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape

3)When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again

4)The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains

5)Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target

6)Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request





TECHNICAL PARAMETERS

Model 5HPX-15
Loading capacity 15 Tons
Dimension 1850*4170*10200mm
Drying Type Low Temperature circulating Type
Power For Fan 2.2KW
Drying Rate 0.5~1.2%
Heat Consumption <20,000 KCalorie
Weight 3000KG
Standard Device Moisture Meter,Conveyor,Fan























                                                    Furnace Burner Options

Furnace Type Yes/No
Diesel Yes
Gas Yes
Coal Yes
Biomass Material Yes(Husk/Wood/Straw/Etc)

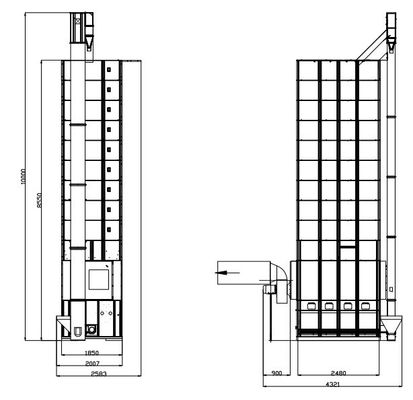

WORKING DIAGRAM

Grain Circulating Batch Type 12 Ton Rice Paddy Dryer 0

Grain Circulating Batch Type 12 Ton Rice Paddy Dryer 1



APPLICANTS:

Grain Circulating Batch Type 12 Ton Rice Paddy Dryer 2

Grain Circulating Batch Type 12 Ton Rice Paddy Dryer 3

Grain Circulating Batch Type 12 Ton Rice Paddy Dryer 4





COMPANY PROFILE

Grain Circulating Batch Type 12 Ton Rice Paddy Dryer 5

Anhui Xingshengli Agricultural Machinery Co.,Ltd is a professional manufacturer with development,

manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,

and about 1200 square meters as the office area in Hefei, Anhui province.


We have professional technical engineers and experts who have been working in grain drying field for

more than 10 years. With the development of our company, we successfully transferred into a listed

company in NEEQ in the April of 2017, our stock code:871356.



The company take full advantage of advanced technique, management, financing and service concept,

unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the

same time, we always research and develop products to meet different market and customer’s demand.

Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary

equipments are available,reaching a quicker grain input & output speed.

Our company always insist on”people foremost, service to farmers” as our management concept; “energy

conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.

We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
